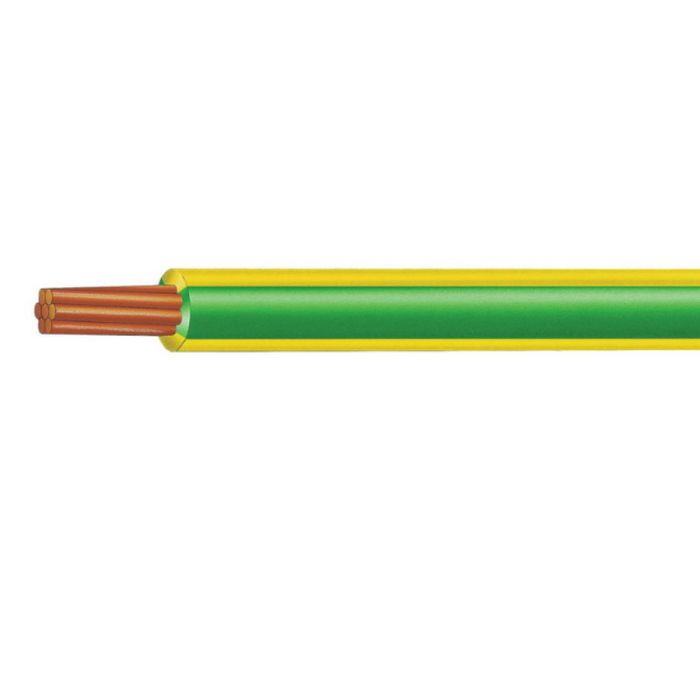

Olex 50mm Building Wire Green/Yellow 1mtr
Olex 50mm Building Wire Green/Yellow 1mtr
In stock
SKU
OLX19/178BWEWA9
Building Wire, Single Insulated, 1 Core, 50 mm, Compacted Copper, 0.6/1 kV, 19/1.78 mm Strands, 10.9 mm Overall Diameter, 1.4 mm Insulation Thickness, Conductor Resistance: DC - 0.387 Ohm/km AC - 0.471 Ohm/km, Insulation Resistance: 5.2 MOhm/km, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | BAAC19AA001AAHN |
| Conductor Resistance | DC: 0.387 Ohm/km AC: 0.471 Ohm/km |
| Conductor Size | 50 mm |
| Conductor Type | Compacted Copper |
| Insulation Colour | Green/Yellow |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 5.2 MOhm/km |
| Insulation Thickness | 1.4 mm |
| Overall Diameter | 10.9 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Product Type | Building Wire |
| Stranding | 19/1.78 mm |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Building Wire, Single Insulated, 1 Core, 50 mm, Compacted Copper, 0.6/1 kV, 19/1.78 mm Strands, 10.9 mm Overall Diameter, 1.4 mm Insulation Thickness, Conductor Resistance: DC - 0.387 Ohm/km AC - 0.471 Ohm/km, Insulation Resistance: 5.2 MOhm/km, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
