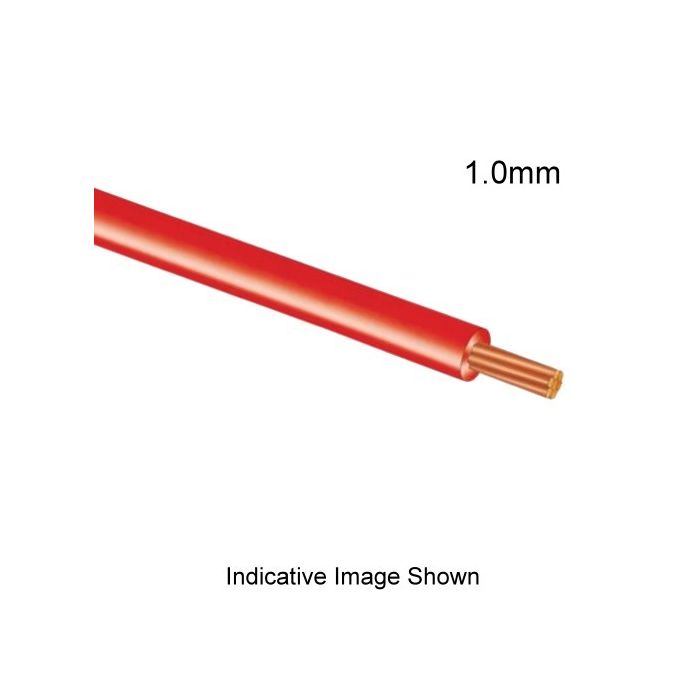

Building Wire 1 Core 1mm V90 PVC Red 0.6/1kV
Olex 1mm Building Wire Red 1mtr
In stock
SKU
OLX1/113BWRA1
Building Wire, 1 mm, Copper, 0.6-1 kV, 1/1.35 mm Strands, 2.8 mm Overall Diameter, 1 mtr Length, 0.8 mm Insulation Thickness, 0.07 kN Pulling Tension, DC: 18.1 Ohm/km AC: 25.8 Ohm/km Conductor Resistance, 15 MOhm/km Insulation Resistance, V-90 PVC Insulation, Red Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | BAAP02A1001AARD |
| Conductor Type | Copper |
| Conductor Resistance | DC: 18.1 Ohm/km AC: 25.8 Ohm/km |
| Insulation Colour | Red |
| Insulation Resistance | 15 MOhm/km |
| Insulation Thickness | 0.8 mm |
| Insulation Material | V-90 PVC |
| Length | 1 mtr |
| Overall Diameter | 2.8 mm |
| Pulling Tension | 0.07 kN |
| Stranding | 1/1.35 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
| Conductor Size | 1 mm |
| Product Type | Building Wire |
Description
Building Wire, 1 mm, Copper, 0.6-1 kV, 1/1.35 mm Strands, 2.8 mm Overall Diameter, 1 mtr Length, 0.8 mm Insulation Thickness, 0.07 kN Pulling Tension, DC: 18.1 Ohm/km AC: 25.8 Ohm/km Conductor Resistance, 15 MOhm/km Insulation Resistance, V-90 PVC Insulation, Red Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
