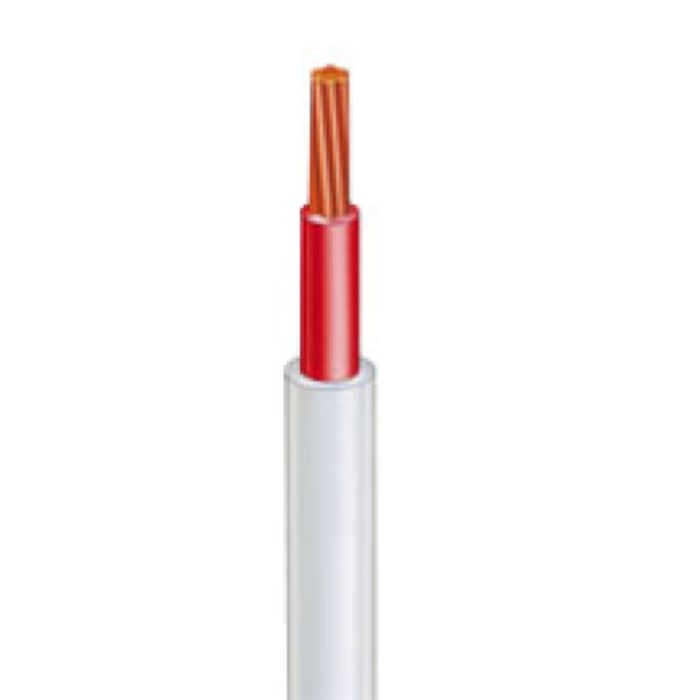

Olex 1mm SDI Cable Red 100mtr
Olex 1mm SDI Cable Red 100mtr
In stock
SKU
OLX1/113-1RA1
Single Core Double Insulated Cable, 1 mm, Stranded Copper, 450/750 Volt, 1/1.13 mm Strands, 4 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Conductor Resistance: DC: 18.1 Ohm/km, AC: 25.8 Ohm/km, Insulation Resistance: 13 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Core, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 5000.2
| Brand | Olex |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | AABP02A1001WTRD |
Description
Single Core Double Insulated Cable, 1 mm, Stranded Copper, 450/750 Volt, 1/1.13 mm Strands, 4 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Conductor Resistance: DC: 18.1 Ohm/km, AC: 25.8 Ohm/km, Insulation Resistance: 13 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Core, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 5000.2
