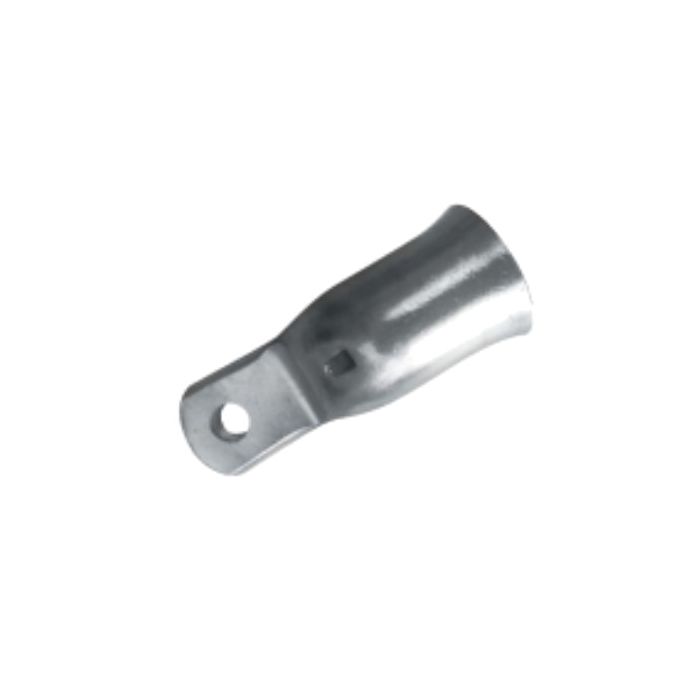

Noremak Circuit Breaker Lug Narrow Palm Copper 50mm M10 Stud 46mm OAL
Noremak Circuit Breaker Lug Narrow Palm Copper 50mm M10 Stud 46mm OAL
In stock
SKU
NORCL50-10NP
Circuit Breaker Lug, Narrow Palm, Copper, 50 mm Conductor, M10 Stud, Barrel Type: Bell Mouth, 22mm Barrel, 46 mm Overall Length, 1 Hole, Number of Strands: 400 x 0.41, Inside Diameter: 9.5 mm, 18 mm Lug Width, A/F Hex Die: 10.4 mm, 205 MPa, Ductile Rating: 40%, Resistivity: 1.72 µOhm cm, Conductivity: 99.99.25% IACS, Annealed Copper Body, Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C
| Brand | Noremak |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CL50-10NP |
| A-F Hex Die | 10.4 mm |
| Barrel Length | 22 mm |
| Barrel Type | Bell Mouth |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductivity | 99.99.25% IACS |
| Conductor Size | 50 mm |
| Ductile Rating | 40% |
| Finish | Tin Electroplated |
| Inside Diameter | 9.5 mm |
| Lug Width | 18 mm |
| Number of Holes | 1 |
| Overall Length | 46 mm |
| Number of Strands | 400 x 0.41 |
| Product Type | Lugs Narrow Palm |
| Resistivity | 1.72 µOhm/cm |
| Stud Size | M10 Stud |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 205 MPa |
Description
Circuit Breaker Lug, Narrow Palm, Copper, 50 mm Conductor, M10 Stud, Barrel Type: Bell Mouth, 22mm Barrel, 46 mm Overall Length, 1 Hole, Number of Strands: 400 x 0.41, Inside Diameter: 9.5 mm, 18 mm Lug Width, A/F Hex Die: 10.4 mm, 205 MPa, Ductile Rating: 40%, Resistivity: 1.72 µOhm cm, Conductivity: 99.99.25% IACS, Annealed Copper Body, Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C
