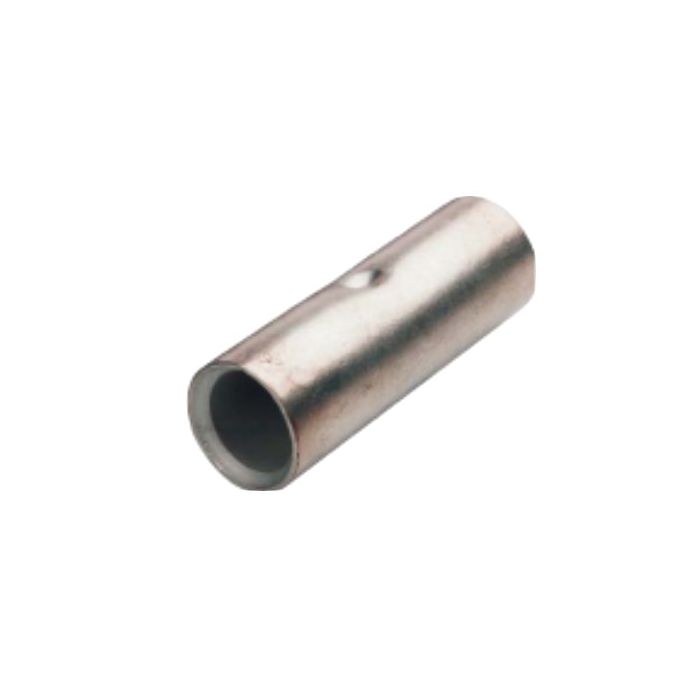

Noremak Crimp Link Standard Copper 2.5mm 7/0.67 22mm OAL
Noremak Crimp Link Standard Copper 2.5mm 7/0.67 22mm OAL
In stock
SKU
NORCCL205
Standard Crimp Link, 2.5 mm, 7/0.67 Strands, 2.4 mm Inside Diameter, 205 Mpa Tensile Strength, 40% Ductile Rating, 1.72 micro-Ohm cm Resistivity, 99.99.25% IACS Conductivity, 22 mm Overall Length, Annealed Copper Body, Annealed Copper, Tin Electroplated, -55 to 155 deg C
| Brand | Noremak |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CCL205 |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductivity | 99.99.25% IACS |
| Conductor Size | 2.5 mm |
| Ductile Rating | 40% |
| Finish | Tin Electroplated |
| Inside Diameter | 2.4 mm |
| Number of Strands | 7/0.67 |
| Overall Length | 22 mm |
| Resistivity | 1.72 micro-Ohm/cm |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 205 MPa |
Description
Standard Crimp Link, 2.5 mm, 7/0.67 Strands, 2.4 mm Inside Diameter, 205 Mpa Tensile Strength, 40% Ductile Rating, 1.72 micro-Ohm cm Resistivity, 99.99.25% IACS Conductivity, 22 mm Overall Length, Annealed Copper Body, Annealed Copper, Tin Electroplated, -55 to 155 deg C
