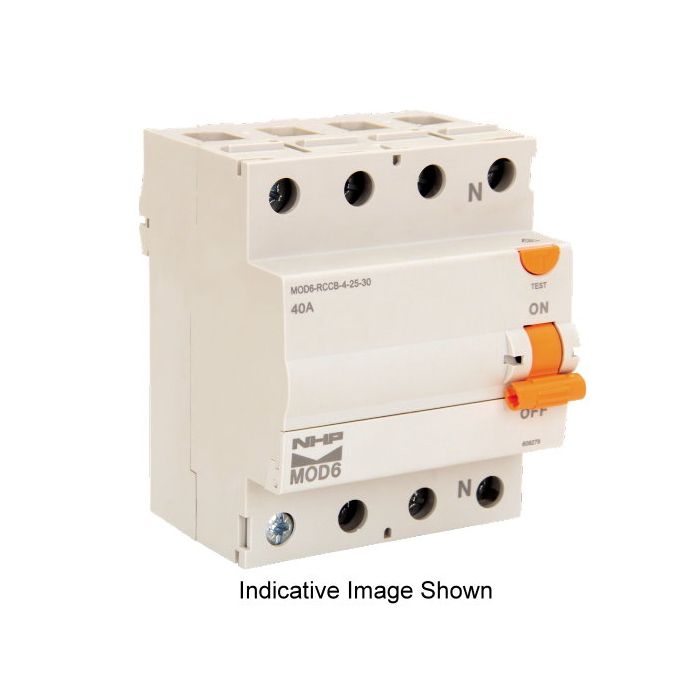

NHP Safety Switch RCCB Instantaneous Type AC 4Pole 63A 415V 6kA 30mA 4Module 72mm DIN Rail Mount
NHP Safety Switch RCCB Instantaneous Type AC 4Pole 63A 415V 6kA 30mA 4Module 72mm DIN Rail Mount
In stock
SKU
NHPMOD6RCCB46330
Safety Switch RCCB Instantaneous Type, 415 Volt, 63 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 4 Modules, 72mm Module Width, 4 Poles, C Curve Trip Characteristic, Fork/Pin Terminal, IP40 Inside/IP20 Outside, DIN Rail, 10000 Cycles, 20000 Cycles Mechanical Durability, 1-35 mm Flexible/1-50 mm Rigid Conductor Conductor, 5 N/m Tightening Torque,-5 to 55 deg C, 86mm Height x 36mm Width x 76mm Depth
| Brand | NHP |
|---|---|
| Range Name | MOD6 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | MOD6RCCB46330-NLA |
| Conductor Size | 1-35 sq-mm Flexible - 1-50 sq-mm Rigid Conductor |
| Current | 63 Amp |
| Depth | 76 mm |
| Height | 86 mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Interrupt Capacity | 6 kA |
| IP Rating | IP40/20 |
| Mechanical Durability | 20000 Cycles |
| Modules | 4 Module 72mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 4 Pole |
| Product Type | Safety Switches RCCB |
| Terminal Type | Fork/Pin |
| Tightening Torque | 5 Nm |
| Temperature | -5 to 55 deg C |
| Width | 36 mm |
| Trip Sensitivity | 30 mA |
| Voltage | 415 Volt |
Description
Safety Switch RCCB Instantaneous Type, 415 Volt, 63 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 4 Modules, 72mm Module Width, 4 Poles, C Curve Trip Characteristic, Fork/Pin Terminal, IP40 Inside/IP20 Outside, DIN Rail, 10000 Cycles, 20000 Cycles Mechanical Durability, 1-35 mm Flexible/1-50 mm Rigid Conductor Conductor, 5 N/m Tightening Torque,-5 to 55 deg C, 86mm Height x 36mm Width x 76mm Depth
