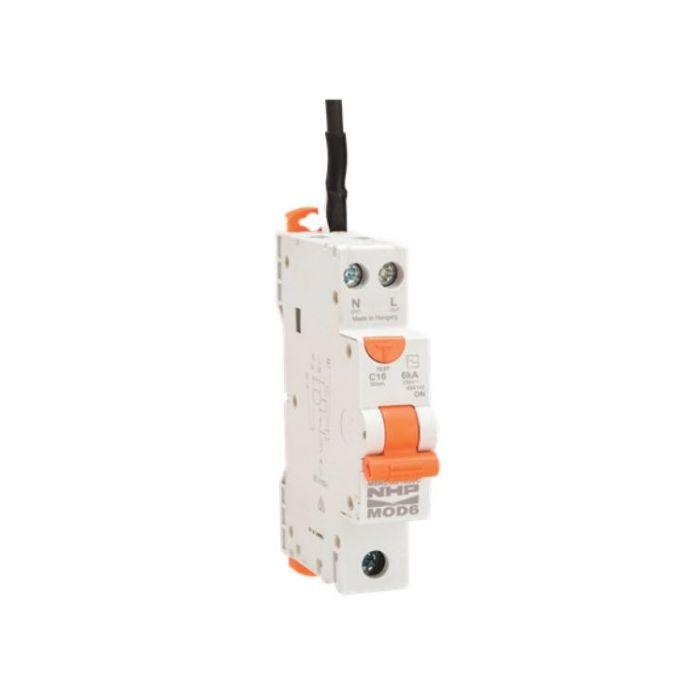

NHP Combination RCD Circuit Breaker RCBO 1P+ N 16 Amp 240V AC 6 kA 18mm DIN 35 Rail
NHP Combination RCD Circuit Breaker RCBO 1P+ N 16 Amp 240V AC 6 kA 18mm DIN 35 Rail
In stock
SKU
NHPM6RCBS1630CAN
Combination RCD Circuit Breaker RCBO, 16 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, 18mm Module Width, Trip Characteristic: C Curve, 16 mm/25 mm Flex/25 mm/35 mm Rigid Terminal Connection, Pin, Fork, IP40, IP20, DIN 35mm Rail,-5 to 55 deg C, 86mm Height, 18mm Width, 76mm Depth
| Features |
|
|---|---|
| Brand | NHP |
| Range Name | MOD6 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | M6RCBS1630CAN-NLA |
| Current | 16 Amp |
| Connection Type | Pin/ Fork |
| Depth | 76 mm |
| Height | 86 mm |
| Frequency | 50/60 Hz |
| IP Rating | IP40/20 |
| Interrupt Capacity | 6 kA |
| Modules | 18 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 1 Pole |
| Product Type | Combination RCBO |
| Terminal Connection | 16 sq-mm / 25 sq-mm Flex / 25 sq-mm / 35 sq-mm Rigid |
| Temperature | -5 to 55 deg C |
| Trip Characteristic | C Curve |
| Voltage | 240 Volt |
| Trip Sensitivity | 30 mA |
| Width | 18 mm |
Description
Combination RCD Circuit Breaker RCBO, 16 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, 18mm Module Width, Trip Characteristic: C Curve, 16 mm/25 mm Flex/25 mm/35 mm Rigid Terminal Connection, Pin, Fork, IP40, IP20, DIN 35mm Rail,-5 to 55 deg C, 86mm Height, 18mm Width, 76mm Depth
