Katko Safety Isolating Switch Surface Mounting 3P 63A 400-690V Light Grey/Black IP66

Katko Safety Isolating Switch Surface Mounting 3P 63A 400-690V Light Grey/Black IP66

In stock
SKU
NHPISO363MG
Add to Compare

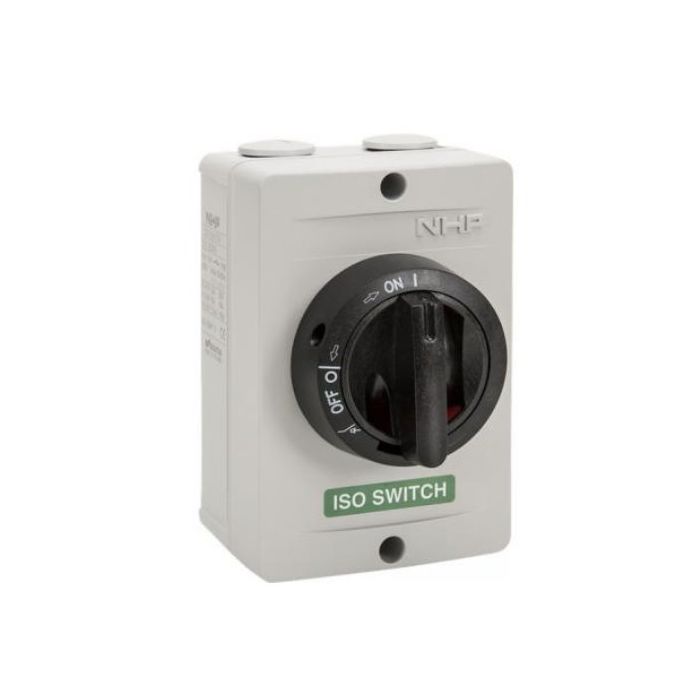

main product photo
Safety Isolating Switch Surface Mounting, 400-690 Volt AC, 63 Amp, 50/60 Hz, 3 Pole, Aluminium, Light Grey, IP66, Legend: ON OFF, Surface Mount, 2.5 to 16 mm, 157 mm Height, 102.5 mm Width, 116 mm Depth, -40 to 80 deg C
More Information
More Information
Features
  • IP65/IP66 rating combined with selection of polycarbonate, aluminium and stainless steel, has any environment, indoor or outdoor, covered
  • Easy to install and operate
  • Choice of larger enclosures for increased wiring space
  • Door interlock when switch is in ON position preventing the unauthorized removal of the enclosure cover for added safety
  • Dedicated ISO TUFF series for arduous industry with 316 stainless steel enclosure and handle with flat roof and sloped roof options to keep accumulation of dirt and other contaminants off the switch
  • LK10 and LK11 handles used on the ISO series are padlockable for added security
  • Snap-on accessories couldn’t be any easier or quicker to install
Brand Katko
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product ISO363MG
Colour Light Grey
Current 63 Amp
Depth 116 mm
Frequency 50/60 Hz
Height 157 mm
IP Rating IP66
Legend ON OFF
Mounting Method Surface
Number Of Poles 3 Pole
Product Type Isolating Switches
Temperature -40 to 80 deg C
Terminal Capacity 2.5-16 mm
Voltage 400-690 Volt
Width 102.5 mm

Description

Safety Isolating Switch Surface Mounting, 400-690 Volt AC, 63 Amp, 50/60 Hz, 3 Pole, Aluminium, Light Grey, IP66, Legend: ON OFF, Surface Mount, 2.5 to 16 mm, 157 mm Height, 102.5 mm Width, 116 mm Depth, -40 to 80 deg C

Infosheets
