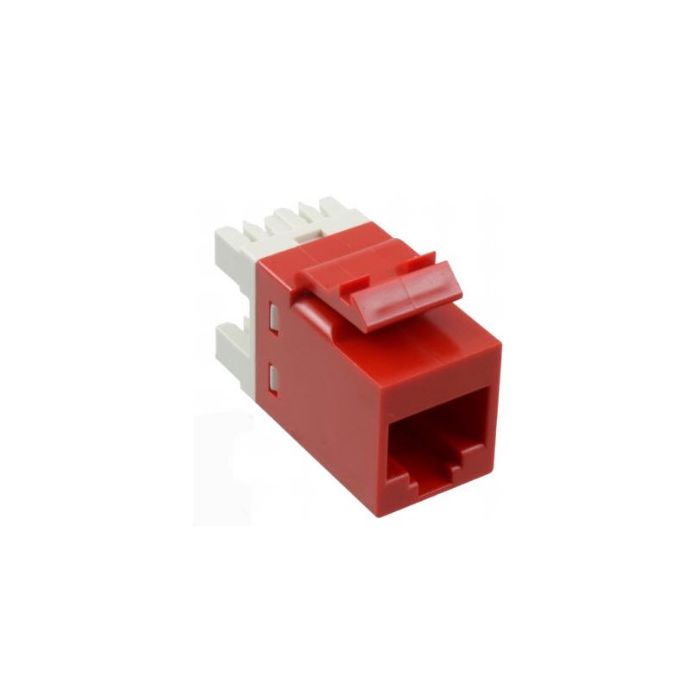

Netconnect SL110 Series Outlet Mechanism Cat6 UTP RJ45 T568A/B Red
Netconnect SL110 Series Outlet Mechanism Cat6 UTP RJ45 T568A/B Red
In stock
SKU
NCO1375055-7
Outlet Mechanism Cat6 UTP, 150 Volt AC, 1.5 Amp, Solid, Stranded, 24-22 AWG, Stranded: 26-24 AWG, RJ45 Connector, Cat6 Unshielded UTP Cable, 100 mOhm Contact Resistance, 500 mOhm Insulation Resistance, 1.27 um Contact Plating Thickness, Wiring Scheme: T568A/B, Flammability: UL 94 V-0, IDC Termination, Standard Outlet, Polycarbonate Housing, Beryllium Copper Contact Base, Gold Contact Plating, Red,-10 to 60 deg C, 16.13mm Height, 14.48mm Width, 30.48mm Depth
| Brand | Netconnect |
|---|---|
| Range Name | SL Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 43223300 |
| UOM | EA |
| Vendor Product | 1375055-7 |
| Cable Type | Cat6 Unshielded UTP |
| Colour | Red |
| Conductor Size | 24-22 AWG/Stranded: 26-24 AWG |
| Connector | RJ45 |
| Contact Base Material | Beryllium Copper |
| Contact Resistance | 100 mOhm |
| Contact Plating Material | Gold Plated |
| Current | 1.5 Amp |
| Depth | 30.48mm |
| Flammability | UL 94 V-0 |
| Height | 16.13mm |
| Housing Material | Polycarbonate |
| Insulation Resistance | 500 mOhm |
| Outlet Type | Standard |
| Temperature | -10 to 60 deg C |
| Termination Type | IDC |
| Width | 14.48mm |
| Wiring Scheme | T568A/B |
| Voltage | 150 Volt |
Description
Outlet Mechanism Cat6 UTP, 150 Volt AC, 1.5 Amp, Solid, Stranded, 24-22 AWG, Stranded: 26-24 AWG, RJ45 Connector, Cat6 Unshielded UTP Cable, 100 mOhm Contact Resistance, 500 mOhm Insulation Resistance, 1.27 um Contact Plating Thickness, Wiring Scheme: T568A/B, Flammability: UL 94 V-0, IDC Termination, Standard Outlet, Polycarbonate Housing, Beryllium Copper Contact Base, Gold Contact Plating, Red,-10 to 60 deg C, 16.13mm Height, 14.48mm Width, 30.48mm Depth
