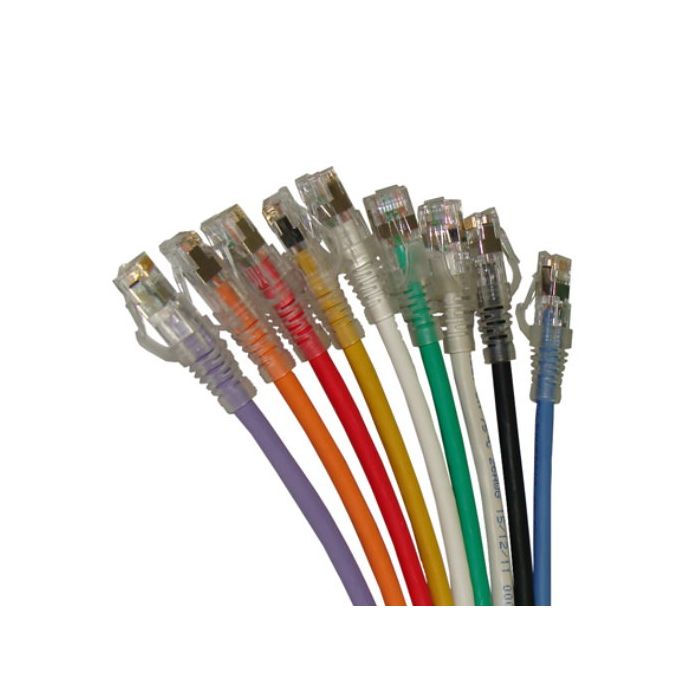

STP Patch Cord Cat6A RJ45-RJ45 4P 26AWG LSZH Blue 1m

Molex STP Patch Cord Cat6A RJ45-RJ45 4 Pair 26AWG LSZH Blue 1m

In stock
SKU
MODPCD-07000-0H

STP Patch Cord Cat6A, Connector A: Slimline RJ45 Plug, Connector B: Slimline RJ45 Plug, 4 Pair, 26 AWG Conductor, Stranded Conductor, 6.5mm OD, 1 mtr Cord Length, 150 VAC Max, 1.5 Amp at 25 deg C, 52mm Bend Radius, Wiring Scheme: T568A/T568B, Copper Conductor, LSZH Sheath, Contact Material: 0.35mm Thick Copper, Boot Material: PVC, Blue Sheath, Clear Boot,-20 to 60 deg C
More Information
Features
  • 4 pair 24 AWG stranded copper wire
  • Pre-terminated with RJ45 plugs
  • Slim clear anti-snag slip on boots
  • Suitable for EIA 568A or 568B wiring
  • LS0H sheath
  • 10G Performance when installed as a complete PowerCat 6A Shielded System
Brand Molex
Standard Pack Size 1
UNSPSC Class 43223300
UOM EA
Vendor Product PCD-07000-0H
Cord Length 1 mtr
Sheath Colour Blue
Product Type Cat6A Patch Cord
Connector A Slim RJ45
Voltage 150 Volt AC
Temperature -20 to 60 deg C
Contact Material 0.35mm Thick Copper
Conductor Size 26 AWG
Connector B Slim RJ45
Sheath Material LSZH
Pair Count 4 Pair
Outside Diameter 6.5mm
Plug Boot Material PVC
Wiring Scheme T568A/T568B
Conductor Material Copper
Current 1.5 Amp

Description

STP Patch Cord Cat6A, Connector A: Slimline RJ45 Plug, Connector B: Slimline RJ45 Plug, 4 Pair, 26 AWG Conductor, Stranded Conductor, 6.5mm OD, 1 mtr Cord Length, 150 VAC Max, 1.5 Amp at 25 deg C, 52mm Bend Radius, Wiring Scheme: T568A/T568B, Copper Conductor, LSZH Sheath, Contact Material: 0.35mm Thick Copper, Boot Material: PVC, Blue Sheath, Clear Boot,-20 to 60 deg C
