Molex PowerCat 6 Module Clip DataGate Jack CAT6 RJ45 T568A/B Polycarbonate White

Molex PowerCat 6 Module Clip DataGate Jack CAT6 RJ45 T568A/B Polycarbonate White

In stock
SKU
MODMMC-00010-02
Add to Compare

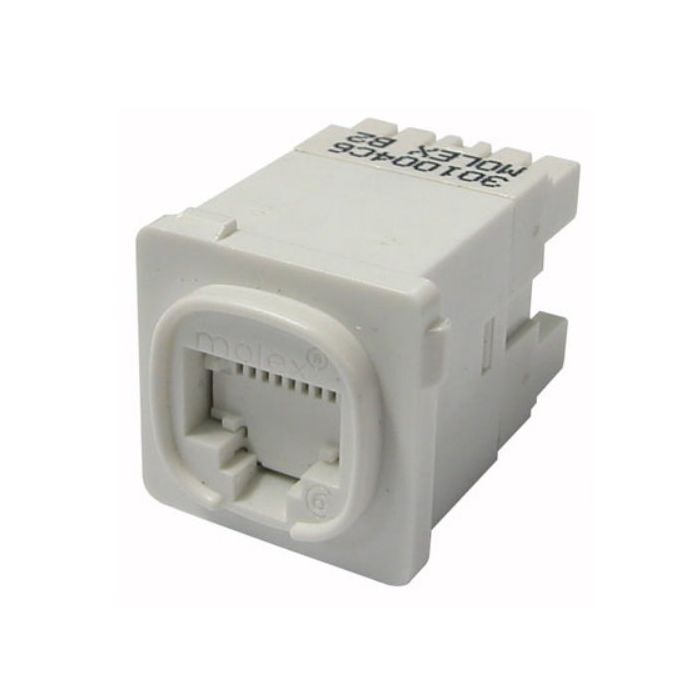

main product photo
Module Clip DataGate Jack, Solid: 22-24 AWG, 2.5 mOhm Contact Resistance, >100 MOhm Insulation Resistance, IDC Termination, CAT6 Cable, Wiring Scheme: T568A/B, Flammability: UL94-V0, Copper Alloy Contact, Polycarbonate Housing, White, 23.5mm Height, 17.9mm Width, 30.53mm Depth, Cat6 DataGate White
More Information
More Information
Features
  • Patented spring-loaded shutter: prevents incomplete mating and protects from dust and contaminants
  • Patented IDC V-shaped contacts that flex not fatigue when terminated
  • Features pointed IDC towers to speed termination and enhance cable retention
  • Dual colour-coding allows for 568 A/B wiring configuration
  • Can be terminated using industry standard punchdown tools
  • RJ-11 & RJ-12 compatible
  • Allows rear and side entry cable termination
  • Engineered for use with Clipsal and HPM wallplate systems
Brand Molex
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product MMC-00010-02
Cable Type CAT6
Conductor Size Solid: 22-24 AWG
Colour White
Contact Material Copper Alloy
Depth 30.53mm
Height 23.5mm
Housing Material Polycarbonate
Please Note Cat6 DataGate White
Width 17.9mm

Description

Module Clip DataGate Jack, Solid: 22-24 AWG, 2.5 mOhm Contact Resistance, >100 MOhm Insulation Resistance, IDC Termination, CAT6 Cable, Wiring Scheme: T568A/B, Flammability: UL94-V0, Copper Alloy Contact, Polycarbonate Housing, White, 23.5mm Height, 17.9mm Width, 30.53mm Depth, Cat6 DataGate White
