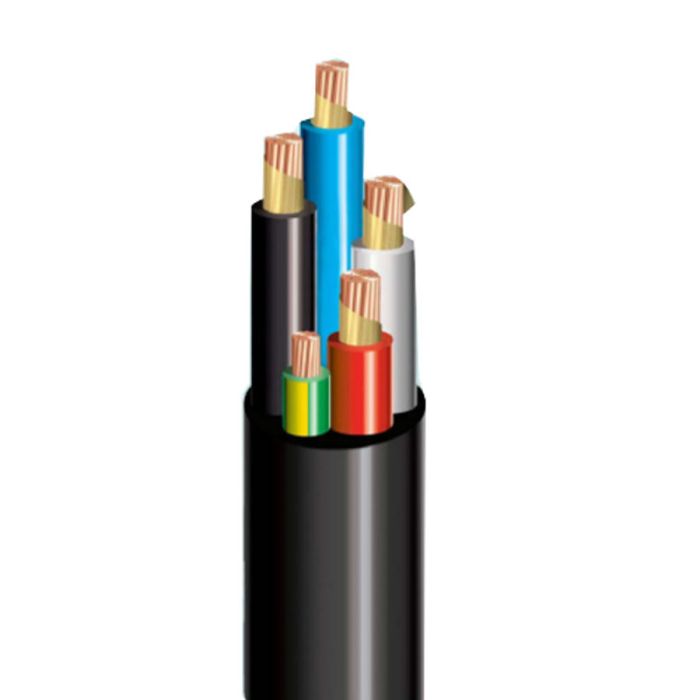

Prysmian 10 mm Fire Rated Cable R-HF-110/HF-110-R Black 500mtr
Prysmian 10 mm Fire Rated Cable R-HF-110/HF-110-R Black 500mtr
In stock
SKU
MMCCEC04QJMLB7/1.35
Fire Rated Cable, 4 Core & Earth, 10 mm, Stranded Plain Annealed Copper, 0.6/1 kV, 22.2 mm Overall Diameter, R-HF-110 Insulation Mica Glass Tape Flame Barrier, HF-110-R Sheath, Red White Blue Black Green/Yellow Cores, Black Sheath, WS52W, 110 deg C, AS/NZS 5000.1
| Brand | Prysmian |
|---|---|
| Range Name | FireStop FS110 |
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199846 |
| AS3013 Rating | WS52W |
| Conductor Size | 10 mm |
| Conductor Type | Stranded Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Insulation Material | R-HF-110 |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 22.2 mm |
| Product Type | Fire Rated Cable |
| Sheath Colour | Black |
| Sheath Material | HF-110-R |
| Standards | AS/NZS 5000.1 |
| Temperature | 110 deg C |
| Voltage | 0.6-1 kV |
Description
Fire Rated Cable, 4 Core & Earth, 10 mm, Stranded Plain Annealed Copper, 0.6/1 kV, 22.2 mm Overall Diameter, R-HF-110 Insulation Mica Glass Tape Flame Barrier, HF-110-R Sheath, Red White Blue Black Green/Yellow Cores, Black Sheath, WS52W, 110 deg C, AS/NZS 5000.1
