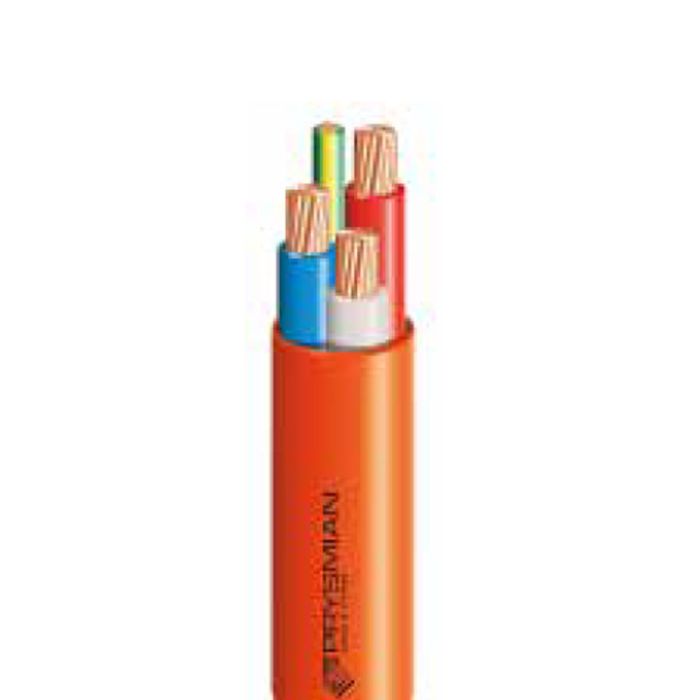

Prysmian 120mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
Prysmian 120mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
In stock
SKU
MMCCEC03XJPLG37/2.03
Circular Power Cable, Unarmoured, 3 Core & Earth, 120mm, Plain Annealed Copper, 0.6/1 kV, 37/2.03mm Strands, 14.2mm Nominal Diameter, 41.4mm Overall Diameter, 250mm Bend Radius, 1.2mm Insulation Thickness, Conductor Resistance: DC - 0.153 Ohm/km, V-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
| Brand | Prysmian |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199679 |
| Bend Radius | 250 mm |
| Conductor Resistance | DC: 0.153 Ohm/km |
| Conductor Size | 120 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Insulation Thickness | 1.2 mm |
| Insulation Material | XLPE |
| Nominal Diameter | 14.2 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 41.4 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Stranding | 37/2.03 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Power Cable, Unarmoured, 3 Core & Earth, 120mm, Plain Annealed Copper, 0.6/1 kV, 37/2.03mm Strands, 14.2mm Nominal Diameter, 41.4mm Overall Diameter, 250mm Bend Radius, 1.2mm Insulation Thickness, Conductor Resistance: DC - 0.153 Ohm/km, V-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
