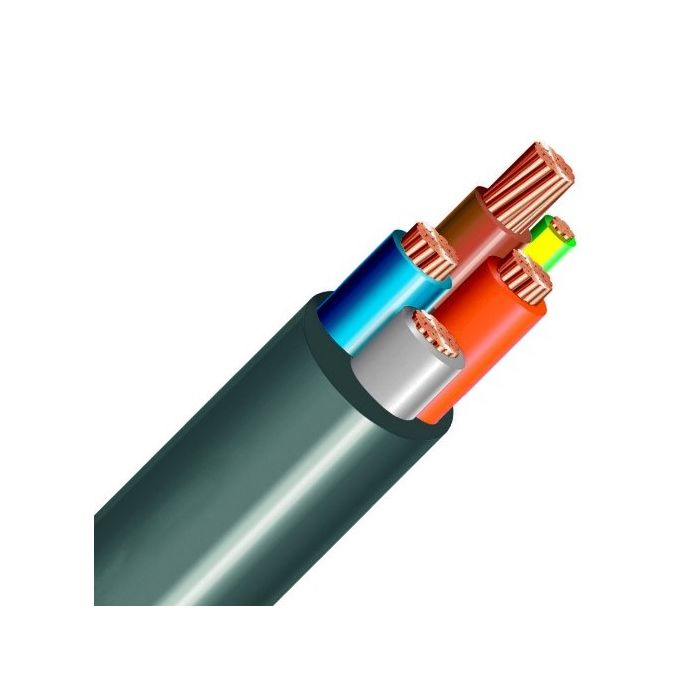

Prysmian Ordinary Duty Flexible Cable 5 Core 1.5mm 250/440V Copper PVC/PVC Grey
Prysmian Ordinary Duty Flexible Cable 5 Core 1.5mm 250/440V Copper PVC/PVC Grey
In stock
SKU
MMC1.55CODFXGR
Flexible Cable, Ordinary Duty, 5 Core, 1.5 mm, Class 5 Stranded Copper, 250/440 Volt, 10.6 mm Overall Diameter, 42.4 mm Bend Radius, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Light Blue White Orange Green/Yellow Cores, Grey Sheath, Static - 90 deg C Flexible - 60 deg C, AS/NZS 3191
| Brand | Prysmian |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20273185 |
| Bend Radius | 42.4 mm |
| Conductor Size | 1.5 mm |
| Conductor Type | Class 5 Stranded Copper |
| Core Colours | Brown/Blue/White/Orange/Green/Yellow |
| Insulation Material | V-90 PVC |
| Number of Cores | 5 Core |
| Overall Diameter | 10.6 mm |
| Product Type | Flexible Cable |
| Sheath Colour | Grey |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 3191 |
| Temperature | Static: 90 deg C Flexible: 60 deg C |
| Voltage | 250-440 Volt |
Description
Flexible Cable, Ordinary Duty, 5 Core, 1.5 mm, Class 5 Stranded Copper, 250/440 Volt, 10.6 mm Overall Diameter, 42.4 mm Bend Radius, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Light Blue White Orange Green/Yellow Cores, Grey Sheath, Static - 90 deg C Flexible - 60 deg C, AS/NZS 3191
