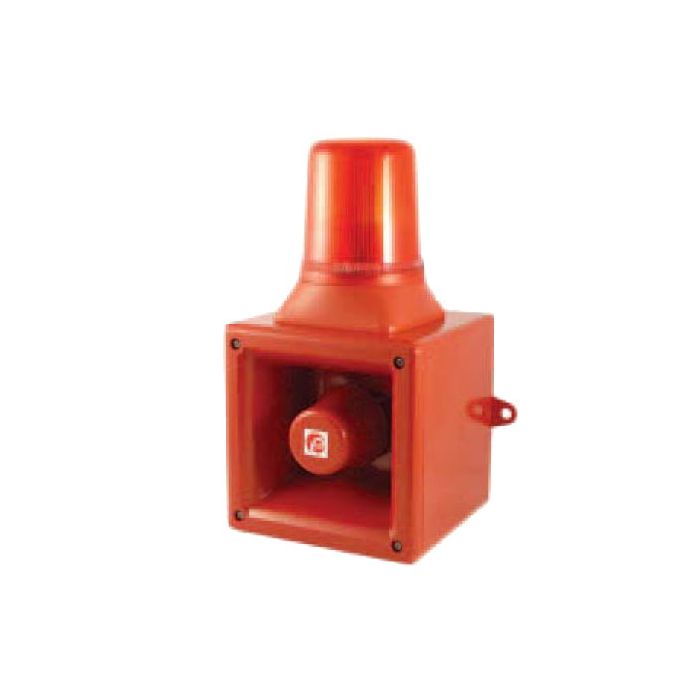

E2S Electronic Sounder & Beacon 119 dB @ 1 m 10-30 VDC Red IP66 Flame Retardant ABS
E2S Electronic Sounder & Beacon 119 dB @ 1 m 10-30 VDC Red IP66 Flame Retardant ABS
In stock
SKU
MECESSAB3112LR
Electronic Alarm Sounder and Beacon, 10-30 Volt DC, 200 mA at 24 Volt DC Sounder, 130 mA at 24 Volt DC Beacon, 119 dB at 1mtr, Multifunction LED Lamp, Light Output: 19 cd, 45 Tones Sound, 5 J Flash, 3 Stage Alarm, Flash Rate: Multifunction, 2 x M20 Knockout Connection, IP66, Flame Retardant ABS, Red Housing, Red Lens, -25-55 deg C, 190mm x 312.8mm
| Features |
|
|---|---|
| Brand | E2S |
| Standard Pack Size | 1 |
| UNSPSC Class | 46171600 |
| UOM | EA |
| Vendor Product | ESSAB3112LR |
| Alarm | 3 Stage |
| Colour | Red Housing/Red Lens |
| Connection Type | 2 x M20 Knockout |
| Current | 200 mA at 24 Volt DC Sounder/130 mA at 24 Volt DC Beacon |
| Dimensions | 190 mm x 312.8 mm |
| Flash Rate | Multifunction |
| Flash Energy | 5 J |
| IP Rating | IP66 |
| Lamp Type | Multifunction LED |
| Light Output | 19 cd |
| Material | Flame Retardant ABS |
| Sound Frequency | 45 Tones |
| Product Type | Audible Warning Devices |
| Temperature | -25-55 deg C |
| Sound Level | 119 dB at 1 mtr |
| Voltage | 10-30 Volt DC |
Description
Electronic Alarm Sounder and Beacon, 10-30 Volt DC, 200 mA at 24 Volt DC Sounder, 130 mA at 24 Volt DC Beacon, 119 dB at 1mtr, Multifunction LED Lamp, Light Output: 19 cd, 45 Tones Sound, 5 J Flash, 3 Stage Alarm, Flash Rate: Multifunction, 2 x M20 Knockout Connection, IP66, Flame Retardant ABS, Red Housing, Red Lens, -25-55 deg C, 190mm x 312.8mm
