Matchmaster Power Supply 14VDC PAL 0.3A F Type Connector
Matchmaster Power Supply 14VDC PAL 0.3A F Type Connector
In stock
SKU
MAT10MM-PSD14P

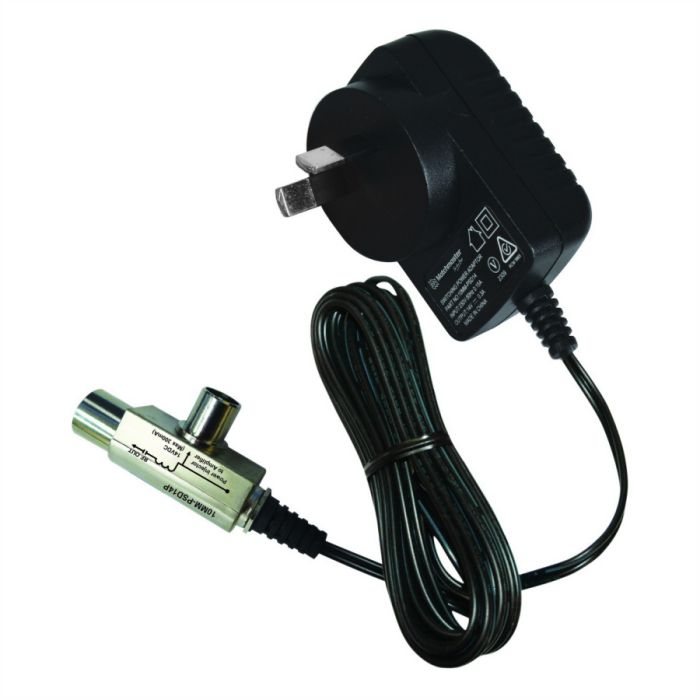

The PSD14P is a 14V DC power supply for TV reception networks to remotely power compatible masthead amplifiers over the coaxial cable. This allows the power supply to be installed at a wall outlet while delivering voltage to the amplifier near the antenna. The PSD14P features an IEC PAL type male to IEC PAL type female injector. The voltage is isolated to the male PAL port on the injector to prevent unwanted voltage from being delivered to consumer equipment. It features posistor protection circuitry and complies with Australian and New Zealand energy standards.
| Features |
|
|---|---|
| Brand | Matchmaster |
| Standard Pack Size | 1 |
| UNSPSC Class | 43221700 |
| UOM | EA |
| Vendor Product | 10MM-PSD14P |
| Connection Type | F-Type Antenna Port Male/F-Type Female TV Port |
| Dimensions | 1.8 mtr Cable Length |
| Please Note | Output: 300 mA |
| Product Type | simple |
Description
The PSD14P is a 14V DC power supply for TV reception networks to remotely power compatible masthead amplifiers over the coaxial cable. This allows the power supply to be installed at a wall outlet while delivering voltage to the amplifier near the antenna. The PSD14P features an IEC PAL type male to IEC PAL type female injector. The voltage is isolated to the male PAL port on the injector to prevent unwanted voltage from being delivered to consumer equipment. It features posistor protection circuitry and complies with Australian and New Zealand energy standards.
