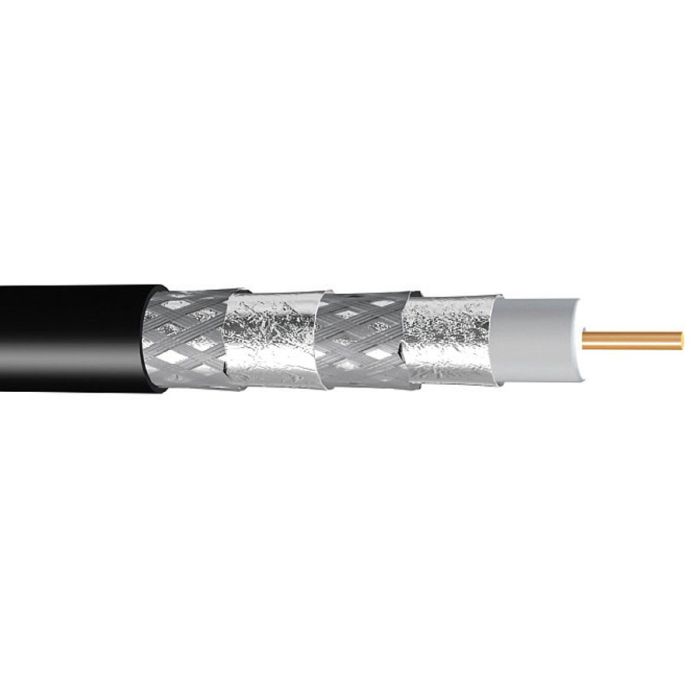

Matchmaster Digimatch RG6 Coaxial Cable Quad Shield Flooded 1.02mm Black 305M
Matchmaster Digimatch RG6 Coaxial Cable Quad Shield Flooded 1.02mm Black 305M
In stock
SKU
MAT06MM-E6QF
RG6 Coaxial Cable Quad Shield Flooded, Inner: 1.02 +/-0.01mm, Outer: 4.78 +/-0.13mm Conductor Diameter, Bend Radius: Single: 35mm, Typical: 70mm, Adhesion Force: >20 N, Pulling Tension: 200 N, Insulation Resistance: >1x10 power of 4 MOhm.km, Capacitance: 54 pF/mtr, 75 +/-3 Ohm Impedance, Al-Mg Alloy Wire Braid, Physically Foamed PE Insulation, Polyethylene Sheath, Non-Bonded Aluminium/PET/Aluminium Tape Screen, Black Sheath, 7.54 +/-0.2mm Overall Diameter, 305 mtr Length,-40 to 70 deg C
| Features |
|
|---|---|
| Brand | Matchmaster |
| Standard Pack Size | 305 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 06MM-E6QF |
| Braid Material | Al-Mg Alloy Wire |
| Bend Radius | Single: 35mm/Typical: 70mm |
| Capacitance | 54 pF/mtr |
| Conductor Diameter | Inner: 1.02 +/-0.01mm/Outer: 4.78 +/-0.13mm |
| Insulation Material | Physically Foamed PE |
| Insulation Resistance | >1x10 power of 4 MOhm.km |
| Length | 305 mtr |
| Overall Diameter | 7.54 +/-0.2mm |
| Screen Material | Non-Bonded Aluminium/PET/Aluminium Tape |
| Pulling Tension | 200 N |
| Product Type | Quad Shield Cable |
| Sheath Colour | Black |
| Sheath Material | Polyethylene |
| Temperature | -40 to 70 deg C |
Description
RG6 Coaxial Cable Quad Shield Flooded, Inner: 1.02 +/-0.01mm, Outer: 4.78 +/-0.13mm Conductor Diameter, Bend Radius: Single: 35mm, Typical: 70mm, Adhesion Force: >20 N, Pulling Tension: 200 N, Insulation Resistance: >1x10 power of 4 MOhm.km, Capacitance: 54 pF/mtr, 75 +/-3 Ohm Impedance, Al-Mg Alloy Wire Braid, Physically Foamed PE Insulation, Polyethylene Sheath, Non-Bonded Aluminium/PET/Aluminium Tape Screen, Black Sheath, 7.54 +/-0.2mm Overall Diameter, 305 mtr Length,-40 to 70 deg C
