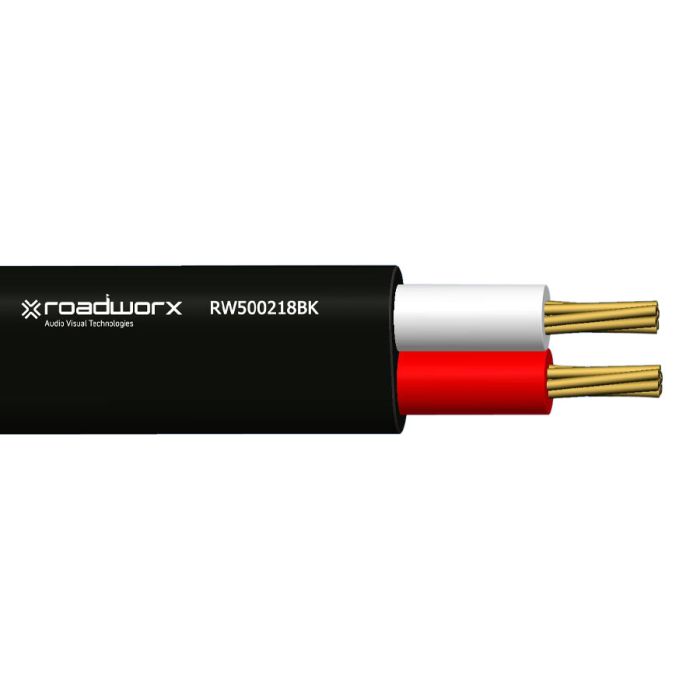

Speaker 2C Double Insulated Fig8 18AWG PVC/PVC Black
In stock
SKU
MADRW500218BK100
Speaker Cable, 2 Core, Double Insulated, Figure 8, 18 AWG, Bare Copper, 24/0.19 mm Strands, 3.5 mm x 6 mm Overall Diameter, Bend Radius: Static - 35 mm, >=0.5 mm Insulation Thickness, >=0.5 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, 95 N Pulling Tension, Tensile Strength: Insulation - >=13.6 N/sq-mm Sheath - >=12 N/sq-mm, Conductor Resistance: DC - 26.4 Ohm/km, PVC Insulation, PVC Sheath, Red White Insulation, Black Sheath, -15 to 70 deg C
| Brand | Madison |
|---|---|
| Range Name | Roadworx |
| Standard Pack Size | 100 |
| UNSPSC Class | 43221700 |
| UOM | MTR |
| Vendor Product | RW500218BK100 |
| Conductor Resistance | DC: 26.4 Ohm/km |
| Bend Radius | Static: 35 mm |
| Elongation | Insulation: >100% Outer Sheath: >100% |
| Insulation Material | PVC |
| Insulation Thickness | >=0.5 mm |
| Insulation Colour | Red White |
| Conductor Size (mm) | 6 Sq-mm |
| Sheath Material | PVC |
| Sheath Colour | Black |
| Pulling Tension | 95 N |
| Overall Diameter | 3.5 mm x 6 mm |
| Number of Cores | 2 |
| Temperature | -15 to 70 deg C |
| Conductor Type | Bare Copper |
| Stranding | 24/0.19 mm |
| Sheath Thickness | >=0.5 mm |
| Tensile Strength | Insulation: >=13.6 N/sq-mm Sheath: >=12 N/sq-mm |
Description
Speaker Cable, 2 Core, Double Insulated, Figure 8, 18 AWG, Bare Copper, 24/0.19 mm Strands, 3.5 mm x 6 mm Overall Diameter, Bend Radius: Static - 35 mm, >=0.5 mm Insulation Thickness, >=0.5 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, 95 N Pulling Tension, Tensile Strength: Insulation - >=13.6 N/sq-mm Sheath - >=12 N/sq-mm, Conductor Resistance: DC - 26.4 Ohm/km, PVC Insulation, PVC Sheath, Red White Insulation, Black Sheath, -15 to 70 deg C
