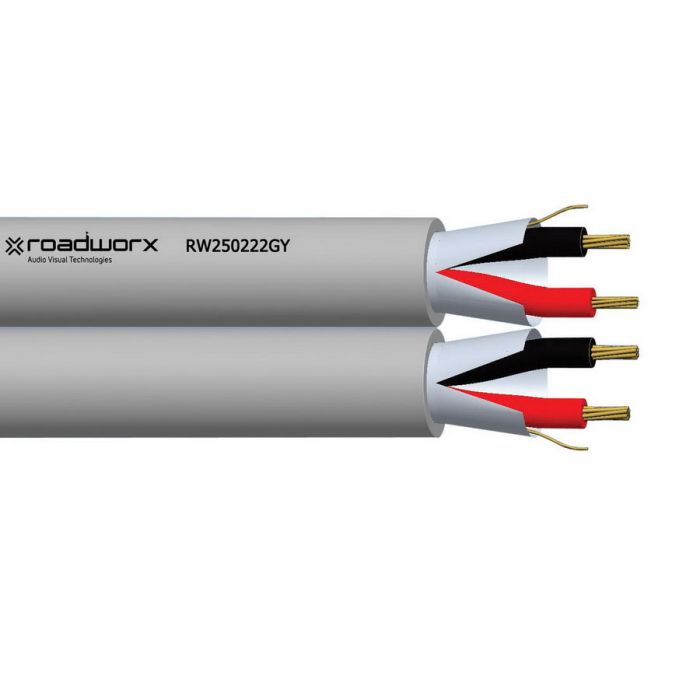

Madison Roadworx Data & Control Cable 22AWG 7/0.25mm PVC/AL/PVC Grey 500M
Madison Roadworx Data & Control Cable 22AWG 7/0.25mm PVC/AL/PVC Grey 500M
In stock
SKU
MADRW250222GY500
Figure 8 Data & Control Cable, 22 AWG, Tinned Copper, Bend Radius: Install: 36.5mm, Elongation: Insulation: >100%; Sheath: >100%, 2 Pair, Pulling Tension: 96 N, Tensile Strength: Insulation: >=13.6 N/mm, Sheath: >=12 N/mm, Stranding: 7/0.25 +/-0.006mm, Insulation Thickness: >=0.25mm, Sheath Thickness: >=0.51mm, Conductor Resistance: DC: 55 Ohm/km at 20 deg C, PVC Insulation, PVC Sheath, Aluminium Foil 100% Coverage Screen, Red, Black Insulation, Grey Sheath, 3.65 +/-0.2mm x 7.3 +/-0.2mm Overall Diameter, 500 mtr Length,-15 to 70 deg C
| Brand | Madison |
|---|---|
| Range Name | Roadworx |
| Standard Pack Size | 500 |
| UNSPSC Class | 43221700 |
| UOM | MTR |
| Vendor Product | RW250222GY500 |
| Bend Radius | Install: 36.5mm |
| Conductor Resistance | DC: 55 Ohm/km at 20 deg C |
| Conductor Size | 22 AWG |
| Conductor Type | Tinned Annealed Copper |
| Elongation | Insulation: >100%; Sheath: >100% |
| Insulation Material | PVC |
| Insulation Colour | Black/Red |
| Insulation Thickness | >=0.25mm |
| Length | 500 mtr |
| Overall Diameter | 3.65 +/-0.2 x 7.3 +/-0.2mm |
| Pair Count | 2 |
| Screen Material | Aluminium Foil |
| Pulling Tension | 96 N |
| Product Type | Data & Control Cable |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Sheath Thickness | >=0.51mm |
| Stranding | 7/0.25 +/-0.006mm |
| Temperature | -15 to 70 deg C |
| Tensile Strength | Insulation: >=13.6 N/sq-mm/Sheath: >=12 N/sq-mm |
Description
Figure 8 Data & Control Cable, 22 AWG, Tinned Copper, Bend Radius: Install: 36.5mm, Elongation: Insulation: >100%; Sheath: >100%, 2 Pair, Pulling Tension: 96 N, Tensile Strength: Insulation: >=13.6 N/mm, Sheath: >=12 N/mm, Stranding: 7/0.25 +/-0.006mm, Insulation Thickness: >=0.25mm, Sheath Thickness: >=0.51mm, Conductor Resistance: DC: 55 Ohm/km at 20 deg C, PVC Insulation, PVC Sheath, Aluminium Foil 100% Coverage Screen, Red, Black Insulation, Grey Sheath, 3.65 +/-0.2mm x 7.3 +/-0.2mm Overall Diameter, 500 mtr Length,-15 to 70 deg C
