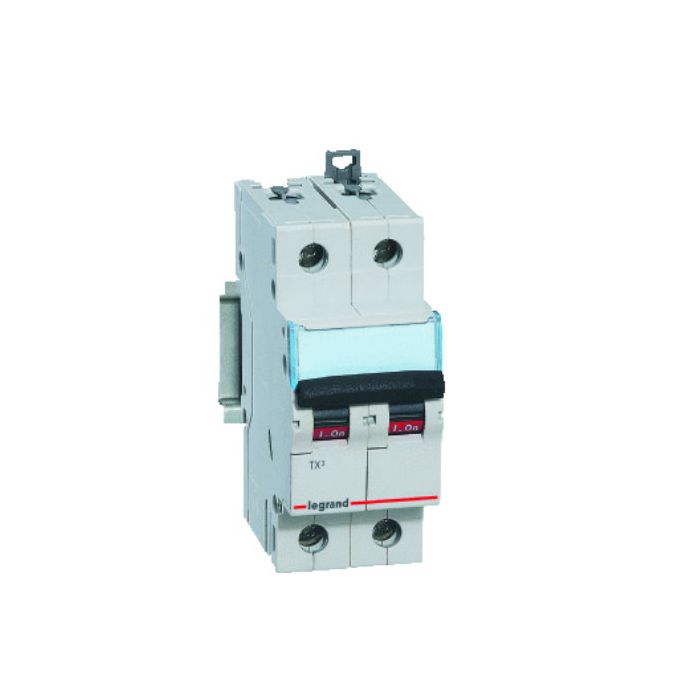

Legrand Miniature Circuit Breaker C Curve 32Amp 6 kA 2Pole 2Module 35.4mm DIN Rail Mount
Legrand Miniature Circuit Breaker C Curve 32Amp 6 kA 2Pole 2Module 35.4mm DIN Rail Mount
In stock
SKU
LEG403531
Miniature Circuit Breaker C Curve C Curve, 230/400 Volt AC, 32 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 2, 35.4mm Module Width, Number of Poles: 2, 3, Trip Characteristic: C Curve, 2 Position Handle Actuator, 2 N/m Mini, 3 N/m Maxi Tightening Torque, 1.5-35 mm Flexible/1.5-25 mm Rigid Cable Terminal Capacity, IP20, IP40, DIN Rail, Polyester Housing,-25 to 70 deg C, 83mm Height x 35.4mm Width x 77.8mm Depth
| Features |
|
|---|---|
| Brand | Legrand |
| Range Name | Lexic TX3 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 403531 |
| Actuator Type | 2 Position Handle |
| Current | 32 Amp |
| Depth | 77.8 mm |
| Frequency | 50/60 Hz |
| Height | 83 mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20/40 |
| Modules | 2 Module 35.4mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 2 Pole |
| Phase | 3 Phase |
| Product Type | Mini Circuit Breakers |
| Temperature | -25 to 70 deg C |
| Tightening Torque | 2 Nm Mini/3 Nm Maxi |
| Voltage | 230-400 Volt |
| Width | 35.4 mm |
Description
Miniature Circuit Breaker C Curve C Curve, 230/400 Volt AC, 32 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 2, 35.4mm Module Width, Number of Poles: 2, 3, Trip Characteristic: C Curve, 2 Position Handle Actuator, 2 N/m Mini, 3 N/m Maxi Tightening Torque, 1.5-35 mm Flexible/1.5-25 mm Rigid Cable Terminal Capacity, IP20, IP40, DIN Rail, Polyester Housing,-25 to 70 deg C, 83mm Height x 35.4mm Width x 77.8mm Depth
