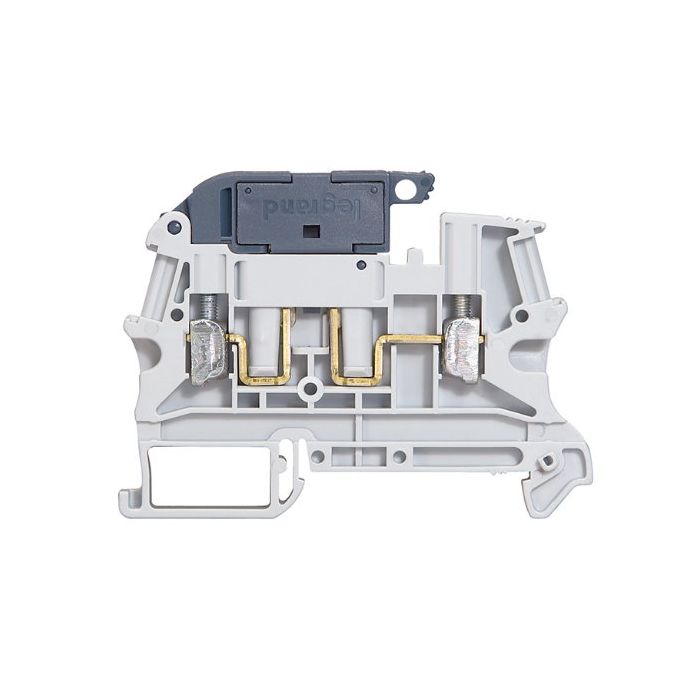

Legrand Rail Terminal Block Fused Screwed 2 Wire 2.5mm Grey Polyamide
Legrand Rail Terminal Block Fused Screwed 2 Wire 2.5mm Grey Polyamide
In stock
SKU
LEG37181
Disconnect Terminal Block, 2.5 mm, 2 Conductors, 250 Volt, 6.3 Amp, 2 Conductor Through Wiring Format, 1 Connection Points, 1 Level, Screw Terminal, DIN Rail Mounting, Thermoplastic Insulation, Grey, -5 to 40 deg C, UL94 V2 Flammability, 52.5 mm Height, 6 mm Width, 71.5 mm Depth
| Brand | Legrand |
|---|---|
| Range Name | Viking 3 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 37181 |
| Current Rating | 6.3 Amp |
| Colour | Grey |
| Conductor Size | 2.5mm |
| Depth | 71.5 mm |
| Flammability | UL94 V2 |
| Height | 52.5 mm |
| Insulation Material | Thermoplastic |
| Number of Conductors | 2 |
| Mounting Method | DIN Rail |
| Number of Connection Points | 1 |
| Number of Levels | 1 |
| Product Type | Disconnect Terminal Blocks |
| Temperature | -5 to 40 deg C |
| Terminal Type | Screw |
| Voltage Rating | 250 Volt |
| Width | 6 mm |
| Wiring Format | 2 Conductor Through |
Description
Disconnect Terminal Block, 2.5 mm, 2 Conductors, 250 Volt, 6.3 Amp, 2 Conductor Through Wiring Format, 1 Connection Points, 1 Level, Screw Terminal, DIN Rail Mounting, Thermoplastic Insulation, Grey, -5 to 40 deg C, UL94 V2 Flammability, 52.5 mm Height, 6 mm Width, 71.5 mm Depth
