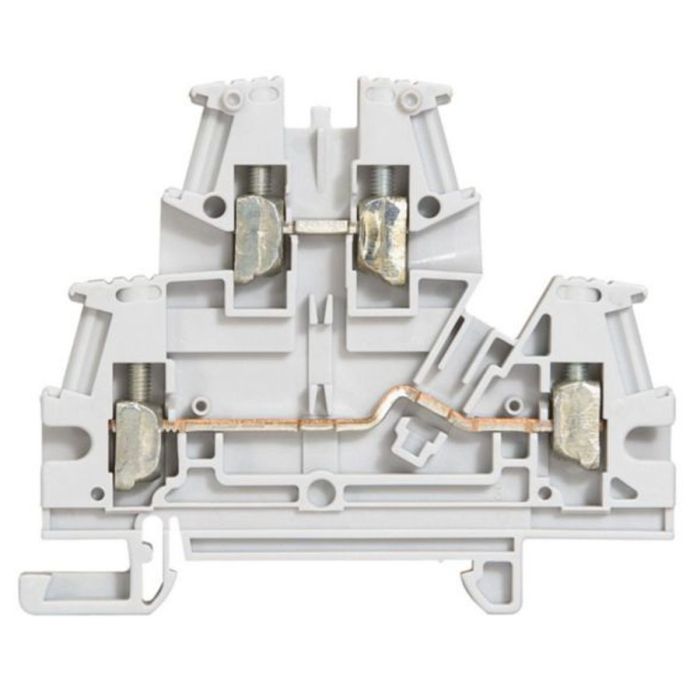

Legrand Rail Terminal Block Screwed 4mm Grey 2 Level Polyamide
Legrand Rail Terminal Block Screwed 4mm Grey 2 Level Polyamide
In stock
SKU
LEG37168
Functional Terminal Block, 4 mm, 2 Conductors, 500 Volt, 32 Amp, 2 Connection Points, 2 Level, Screw Terminal, DIN Rail Mounting, Thermoplastic Insulation, Grey, -5 to 40 deg C, UL94 V2 Flammability, 62.5 mm Height, 6 mm Width, 75 mm Depth
| Brand | Legrand |
|---|---|
| Range Name | Viking 3 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 37168 |
| Current Rating | 32 Amp |
| Colour | Grey |
| Conductor Size | 4.0mm |
| Depth | 75 mm |
| Flammability | UL94 V2 |
| Height | 62.5 mm |
| Insulation Material | Thermoplastic |
| Number of Conductors | 2 |
| Mounting Method | DIN Rail |
| Number of Connection Points | 2 |
| Number of Levels | 2 |
| Temperature | -5 to 40 deg C |
| Terminal Type | Screw |
| Voltage Rating | 500 Volt |
| Width | 6 mm |
Description
Functional Terminal Block, 4 mm, 2 Conductors, 500 Volt, 32 Amp, 2 Connection Points, 2 Level, Screw Terminal, DIN Rail Mounting, Thermoplastic Insulation, Grey, -5 to 40 deg C, UL94 V2 Flammability, 62.5 mm Height, 6 mm Width, 75 mm Depth
