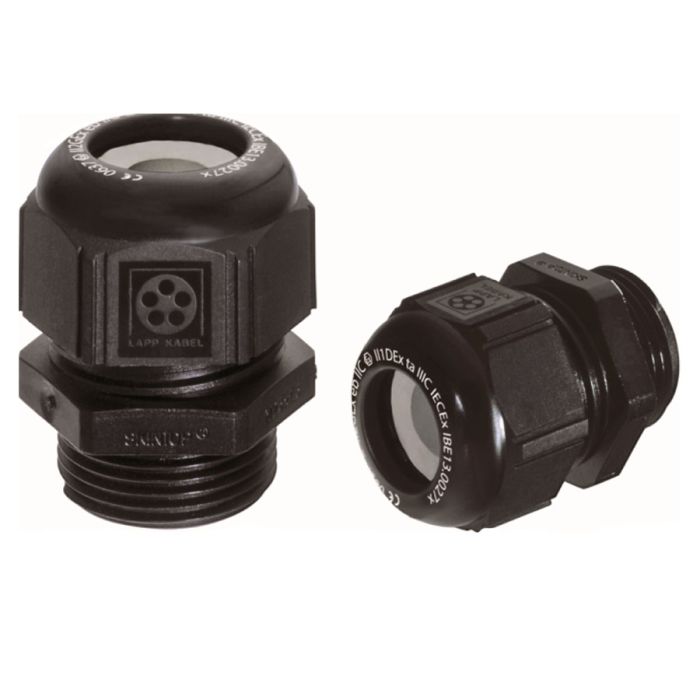

Lapp Kabel Cable Gland Explosion Proof 37-45mm M63 x 1.5 IP68
Lapp Kabel Cable Gland Explosion Proof 37-45mm M63 x 1.5 IP68
In stock
SKU
LAP54115270
Cable Gland, Explosion Proof, M63 x 1.5, 12 mm Thread Length, 1.5 mm Pitch, 37 mm Min. Sheath OD, 45 mm Max. Sheath OD, 66 mm Width Across Flats, 73.9 mm Width Across Corners, IP68, Special Elastomer Seal, Polyamide Body, RAL 9005 Black Finish, 71 mm Overall Length, -20 to 80 deg C
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Skintop K-M ATEX Plus |
| Standard Pack Size | 5 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 54115270 |
| Body Material | Polyamide |
| Finish | Black |
| IP Rating | IP68 |
| Max. Sheath OD | 45 mm |
| Min. Sheath OD | 37 mm |
| Overall Length | 71 mm |
| Product Type | Cable Glands Unarmoured Hazardous Area |
| Temperature | -20 to 80 deg C |
| Seal Material | Special Elastomer |
| Thread Length | 12 mm |
| Thread Pitch | 1.5 mm |
| Width Across Flats | 66 mm |
| Thread Size | M63 x 1.5 |
| Width Across Corners | 73.9 mm |
Description
Cable Gland, Explosion Proof, M63 x 1.5, 12 mm Thread Length, 1.5 mm Pitch, 37 mm Min. Sheath OD, 45 mm Max. Sheath OD, 66 mm Width Across Flats, 73.9 mm Width Across Corners, IP68, Special Elastomer Seal, Polyamide Body, RAL 9005 Black Finish, 71 mm Overall Length, -20 to 80 deg C
