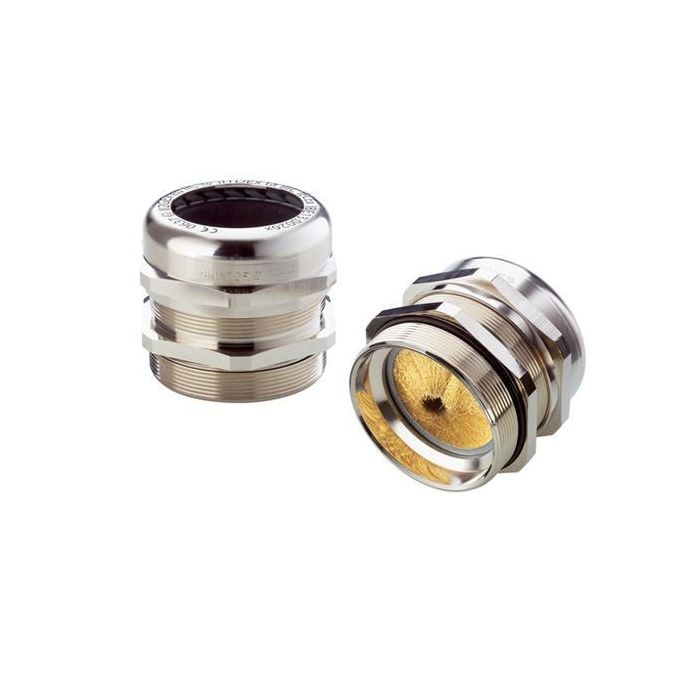

Lapp Kabel Cable Gland EMC VSD Screened Cable M50 x 1.5 27-35mm Wire Brush IP68
Lapp Kabel Cable Gland EMC VSD Screened Cable M50 x 1.5 27-35mm Wire Brush IP68
In stock
SKU
LAP53112679
Cable Gland, EMC VSD Screened Cable, M50 x 1.5, 10 mm Thread Length, 1.5 mm Pitch, 27 mm Min. Sheath OD, 35 mm Max. Sheath OD, IP68, Special Elastomer Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), Brass Wire Brush
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Skintop MS-M Brush |
| Standard Pack Size | 5 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 53112679 |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP68 |
| Max. Sheath OD | 35 mm |
| Min. Sheath OD | 27 mm |
| Please Note | Brass Wire Brush |
| Product Type | Cable Glands EMC |
| Seal Material | Special Elastomer |
| Thread Pitch | 1.5 mm |
| Thread Length | 10 mm |
| Temperature | -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed) |
| Thread Size | M50 x 1.5 |
Description
Cable Gland, EMC VSD Screened Cable, M50 x 1.5, 10 mm Thread Length, 1.5 mm Pitch, 27 mm Min. Sheath OD, 35 mm Max. Sheath OD, IP68, Special Elastomer Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), Brass Wire Brush
