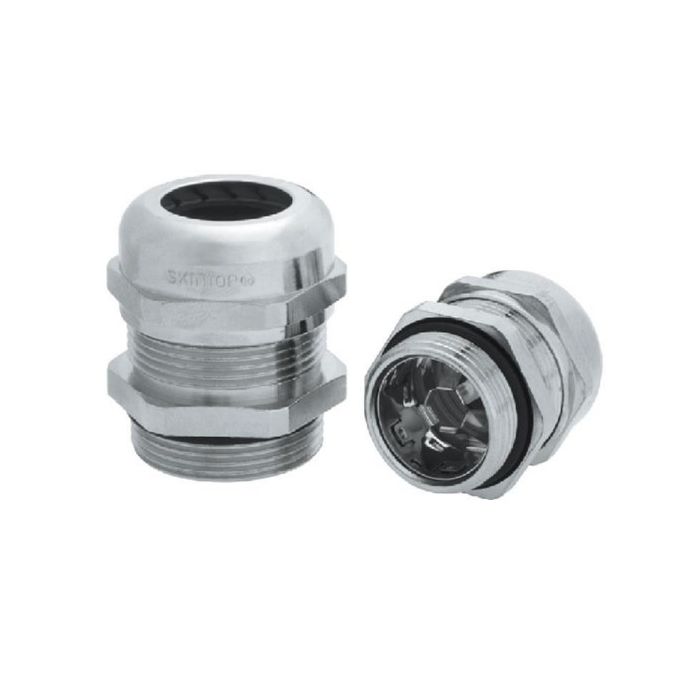

Lapp Kabel Cable Gland EMC VSD Screened Cable M12 x 1.5 3.5-7mm IP68

Lapp Kabel Cable Gland EMC VSD Screened Cable M12 x 1.5 3.5-7mm IP68

In stock
SKU
LAP53112610
Cable Gland, EMC VSD Screened Cable, M12 x 1.5, 6.5 mm Thread Length, 1.5 mm Pitch, 3.5 mm Min. Sheath OD, 7 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)
More Information
Features
  • Low-resistance screen contact, optimum EMC protection
  • Suitable for cables with and without inner sheath
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble
  • Also suitable for continuing the cable screen to another connection
  • For telecommunication, industrial machinery and plant engineering, measurement and control technology, automation technology, EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath
  • NBR O-ring
  • Polyamide insert
Brand Lapp Kabel
Range Name Skintop MS-SC-M
Standard Pack Size 50
UNSPSC Class 39121400
UOM EA
Vendor Product 53112610
Body Material Brass
Finish Nickel Plated
IP Rating IP68
Max. Sheath OD 7 mm
Min. Sheath OD 3.5 mm
Product Type Cable Glands EMC
Seal Material CR
Temperature -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Thread Length 6.5 mm
Thread Pitch 1.5 mm
Thread Size M12 x 1.5

Description

Cable Gland, EMC VSD Screened Cable, M12 x 1.5, 6.5 mm Thread Length, 1.5 mm Pitch, 3.5 mm Min. Sheath OD, 7 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)
