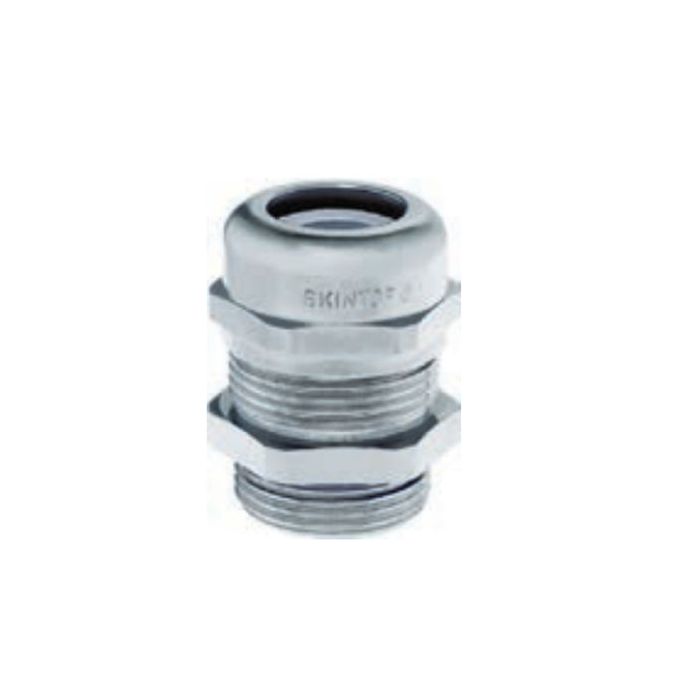

Lapp Kabel Metal Cable Gland Unarmoured General Purpose M75x1.5 53-63mm Nickel Plated Brass IP69
Lapp Kabel Metal Cable Gland Unarmoured General Purpose M75x1.5 53-63mm Nickel Plated Brass IP69
In stock
SKU
LAP53112511
Metal Cable Gland, Unarmoured, General Purpose, M75 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 53 mm Min. Sheath OD, 63 mm Max. Sheath OD, For Unarmoured Cable, IP69, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), 105 mm Overall Length, 1 Piece
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Skintop MSR-M |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 53112511 |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Unarmoured Cable |
| IP Rating | IP69 |
| Max. Sheath OD | 63 mm |
| Overall Length | 105 mm |
| Min. Sheath OD | 53 mm |
| Product Type | Cable Glands Metal |
| Seal Material | CR |
| Temperature | -25 to 100 deg C (Dynamic)/-40 to 100 deg C (Fixed) |
| Thread Length | 15 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M75 x 1.5 |
Description
Metal Cable Gland, Unarmoured, General Purpose, M75 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 53 mm Min. Sheath OD, 63 mm Max. Sheath OD, For Unarmoured Cable, IP69, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), 105 mm Overall Length, 1 Piece
