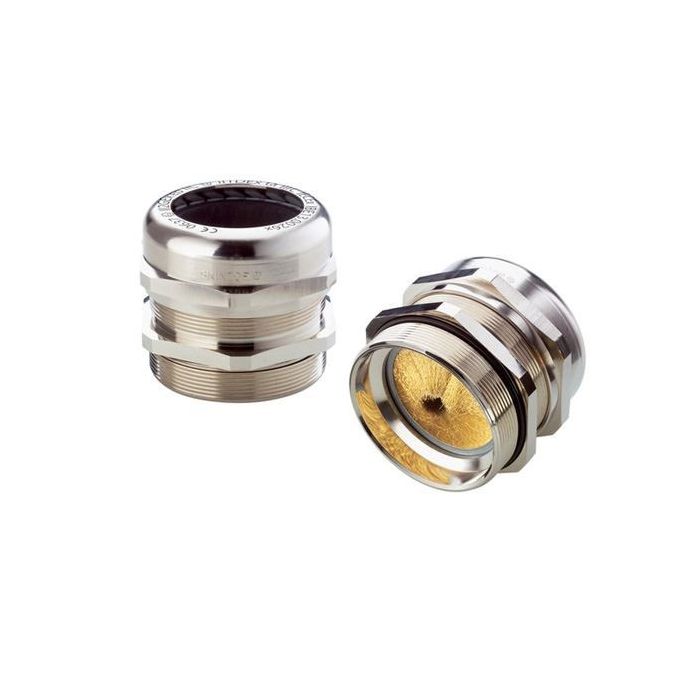

Lapp Kabel Cable Gland EMC VSD Screened Cable M110 Plus x 2 86-98mm IP68

Lapp Kabel Cable Gland EMC VSD Screened Cable M110 Plus x 2 86-98mm IP68

In stock
SKU
LAP53112504
Cable Gland, EMC VSD Screened Cable, M110 Plus x 2, 25 mm Thread Length, 2 mm Pitch, 86 mm Min. Sheath OD, 98 mm Max. Sheath OD, IP68, Special Elastomer Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)
More Information
Features
  • Faster, easier screen contact
  • Optimum, low-resistance 360 deg screen contact
  • Faster than any other comparable system
  • Uncomplicated and reliable
  • Maximum assembly freedom during adjustment
  • For EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath, automation systems, high-power drives, frequency converters, conveyor and transport systems
  • Special elastomer O-ring
  • Brass EMC brush
Brand Lapp Kabel
Range Name Skintop MS-M Brush
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product 53112504
Body Material Brass
Finish Nickel Plated
IP Rating IP68
Max. Sheath OD 98 mm
Min. Sheath OD 86 mm
Product Type Cable Glands EMC
Seal Material Special Elastomer
Temperature -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Thread Length 25 mm
Thread Pitch 2 mm
Thread Size M110 x 2

Description

Cable Gland, EMC VSD Screened Cable, M110 Plus x 2, 25 mm Thread Length, 2 mm Pitch, 86 mm Min. Sheath OD, 98 mm Max. Sheath OD, IP68, Special Elastomer Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)
