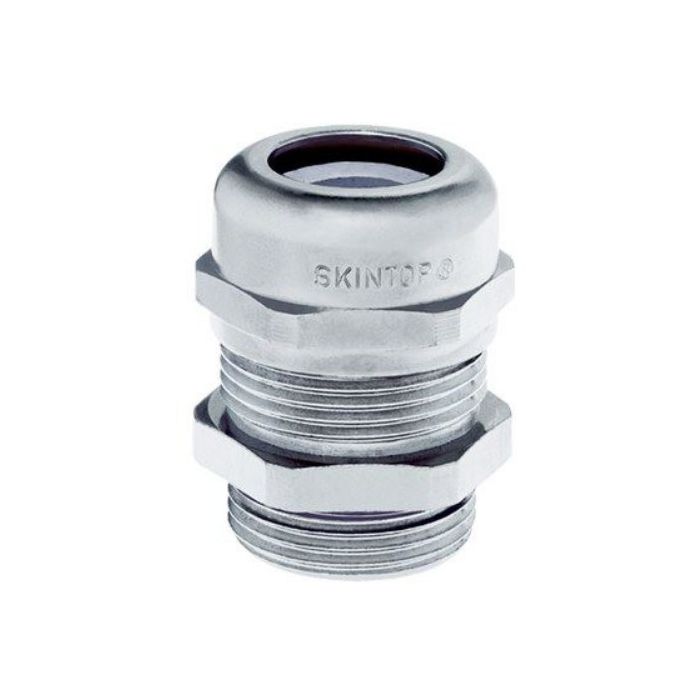

Lapp Kabel Metal Cable Gland Unarmoured General Purpose M40x1.5 15-23mm Nickel Plated Brass IP69
Lapp Kabel Metal Cable Gland Unarmoured General Purpose M40x1.5 15-23mm Nickel Plated Brass IP69
In stock
SKU
LAP53112150
Metal Cable Gland, Unarmoured, General Purpose, M40 x 1.5, 9 mm Thread Length, 1.5 mm Pitch, 15 mm Min. Sheath OD, 23 mm Max. Sheath OD, For Unarmoured Cable, IP69, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), 48 mm Overall Length, 10 Pieces
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Skintop MSR-M |
| Standard Pack Size | 10 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 53112150 |
| For Use With | Unarmoured Cable |
| Finish | Nickel Plated |
| IP Rating | IP69 |
| Body Material | Brass |
| Product Type | Cable Glands Metal |
| Overall Length | 48 mm |
| Max. Sheath OD | 23 mm |
| Min. Sheath OD | 15 mm |
| Seal Material | CR |
| Temperature | -25 to 100 deg C (Dynamic)/-40 to 100 deg C (Fixed) |
| Thread Length | 9 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M40 x 1.5 |
Description
Metal Cable Gland, Unarmoured, General Purpose, M40 x 1.5, 9 mm Thread Length, 1.5 mm Pitch, 15 mm Min. Sheath OD, 23 mm Max. Sheath OD, For Unarmoured Cable, IP69, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), 48 mm Overall Length, 10 Pieces
