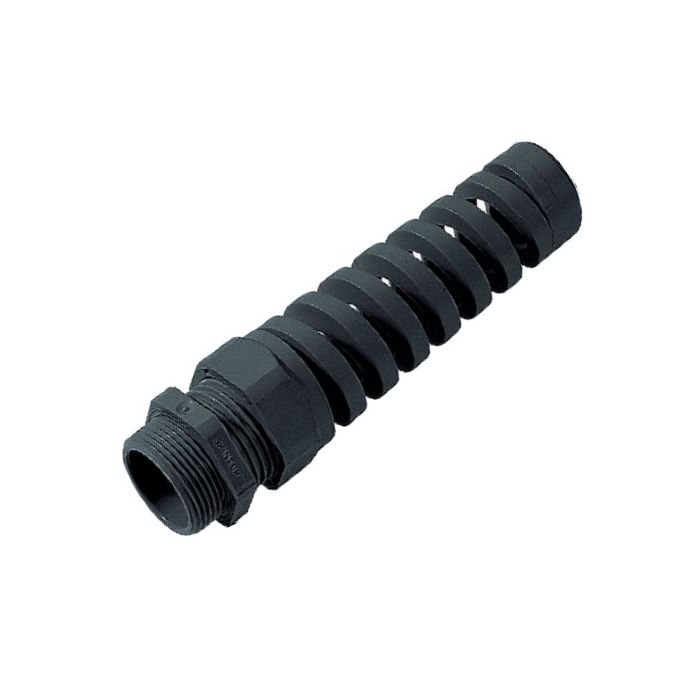

Lapp Kabel Cable Gland Spiral Strain Relief Polyamide M12 x 1.5 3.5-7mm IP68
Lapp Kabel Cable Gland Spiral Strain Relief Polyamide M12 x 1.5 3.5-7mm IP68
In stock
SKU
LAP53111700
Cable Gland Spiral Strain Relief, M12 x 1.5, 8 mm Thread Length, 1.5 mm Pitch, 3.5 mm Min. Sheath OD, 7 mm Max. Sheath OD, IP68, CR Seal, Polyamide Body, RAL 9005 Black Finish, -20 to 100 deg C, 64 mm Overall Length, Lock Nut Purchased Separately If Required
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Skintop BS-M |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 53111700 |
| Body Material | Polyamide |
| IP Rating | IP68 |
| Max. Sheath OD | 7 mm |
| Finish | Black |
| Min. Sheath OD | 3.5 mm |
| Overall Length | 64 mm |
| Please Note | w/out Locknut |
| Product Type | Cable Glands Non Metal |
| Seal Material | CR |
| Thread Length | 8 mm |
| Temperature | -20 to 100 deg C |
| Thread Size | M12 x 1.5 |
| Thread Pitch | 1.5 mm |
Description
Cable Gland Spiral Strain Relief, M12 x 1.5, 8 mm Thread Length, 1.5 mm Pitch, 3.5 mm Min. Sheath OD, 7 mm Max. Sheath OD, IP68, CR Seal, Polyamide Body, RAL 9005 Black Finish, -20 to 100 deg C, 64 mm Overall Length, Lock Nut Purchased Separately If Required
