Lapp Kabel Cable Gland General Purpose Polyamide M63 x 1.5 28-39mm IP69
Lapp Kabel Cable Gland General Purpose Polyamide M63 x 1.5 28-39mm IP69
In stock
SKU
LAP53111370

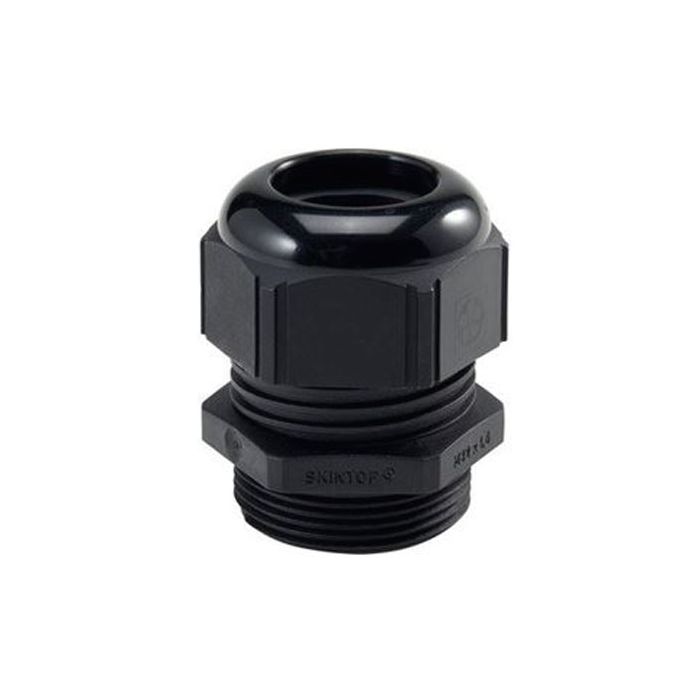

Cable Gland, General Purpose, M63 x 1.5, 12 mm Thread Length, 1.5 mm Pitch, 28 mm Min. Sheath OD, 39 mm Max. Sheath OD, IP69, CR Seal, Polyamide Body, RAL 9005 Black Finish, -40 to 100 deg C (Fixed). -20 to 100 deg C (Dynamic), 71 mm Overall Length
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Skintop STR-M |
| Standard Pack Size | 5 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 53111370 |
| Body Material | Polyamide |
| Finish | Black |
| Overall Length | 71 mm |
| IP Rating | IP69 |
| Min. Sheath OD | 28 mm |
| Max. Sheath OD | 39 mm |
| Product Type | Cable Glands Non-Metal |
| Seal Material | CR |
| Thread Pitch | 1.5 mm |
| Temperature | -40 to 100 deg C (Fixed). -20 to 100 deg C (Dynamic) |
| Thread Length | 12 mm |
| Thread Size | M63 x 1.5 |
Description
Cable Gland, General Purpose, M63 x 1.5, 12 mm Thread Length, 1.5 mm Pitch, 28 mm Min. Sheath OD, 39 mm Max. Sheath OD, IP69, CR Seal, Polyamide Body, RAL 9005 Black Finish, -40 to 100 deg C (Fixed). -20 to 100 deg C (Dynamic), 71 mm Overall Length
