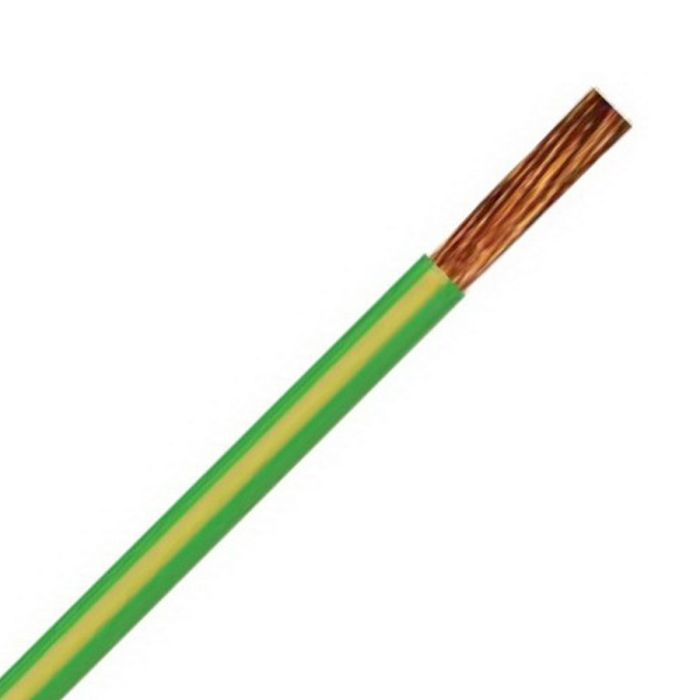

Lapp Kabel Flexible Wire Single Insulated 1 Core 50mm 0.6/1kV Copper TPR Green/Yellow
Lapp Kabel Flexible Wire Single Insulated 1 Core 50mm 0.6/1kV Copper TPR Green/Yellow
In stock
SKU
LAP3801525
Flexible Wire, Single Insulated, 1 Core, 50 mm, Class 6 Super Fine Copper, 0.6/1 kV, 1558/0.2 mm Strands, 12.5 mm Overall Diameter, Bend Radius: Static - 62.5 mm Flexible - 187.5 mm, TPR Insulation, Unsheathed, Green/Yellow Insulation, -30 to 90 deg C
| Brand | Lapp Kabel |
|---|---|
| Range Name | TP90 |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 3801525 |
| Bend Radius | Static: 62.5 mm - Flexible: 187.5 mm |
| Conductor Size | 50 mm |
| Conductor Type | Class 6 Super Fine Copper |
| Insulation Colour | Green/Yellow |
| Insulation Material | TPR |
| Overall Diameter | 12.5 mm |
| Number of Cores | 1 Core |
| Product Type | Flexible Cable |
| Sheath Material | Unsheathed |
| Stranding | 1558/0.2 mm |
| Temperature | -30 to 90 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Wire, Single Insulated, 1 Core, 50 mm, Class 6 Super Fine Copper, 0.6/1 kV, 1558/0.2 mm Strands, 12.5 mm Overall Diameter, Bend Radius: Static - 62.5 mm Flexible - 187.5 mm, TPR Insulation, Unsheathed, Green/Yellow Insulation, -30 to 90 deg C
