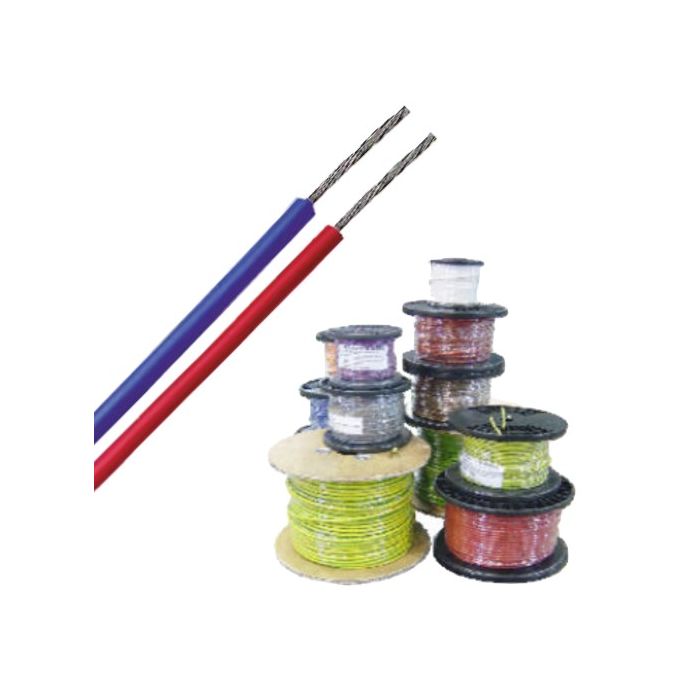

Lapp Kabel 2.5mm 1 Core Brown High Temperature Flexible Wire V90HT PVC
Lapp Kabel 2.5mm 1 Core Brown High Temperature Flexible Wire V90HT PVC
In stock
SKU
LAP3801043
Flexible Wire, High Temperature, 2.5 mm, Stranded Tinned Annealed Copper, 0.6-1 kV, 1 Core, 3.7 mm Overall Diameter, 11.1 mm Static Bend Radius, >20 GOhm/cm Insulation Resistance, V-90HT PVC Insulation, Brown Insulation, Unsheathed, Flexible: -20 to 105 deg C, CE RoHS UL 1015 UL 10269
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 3801043 |
| Bend Radius | Static 11.1 mm |
| Conductor Type | Stranded Tinned Annealed Copper |
| Conductor Size | 2.5 mm |
| Insulation Material | V-90HT PVC |
| Insulation Colour | Brown |
| Insulation Resistance | >20 Gohm/cm |
| Overall Diameter | 3.7 mm |
| Number of Cores | 1 Core |
| Sheath Material | Unsheathed |
| Standards | CE RoHS UL 1015 UL 10269 |
| Temperature | Flexible -20 to 105 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Wire, High Temperature, 2.5 mm, Stranded Tinned Annealed Copper, 0.6-1 kV, 1 Core, 3.7 mm Overall Diameter, 11.1 mm Static Bend Radius, >20 GOhm/cm Insulation Resistance, V-90HT PVC Insulation, Brown Insulation, Unsheathed, Flexible: -20 to 105 deg C, CE RoHS UL 1015 UL 10269
