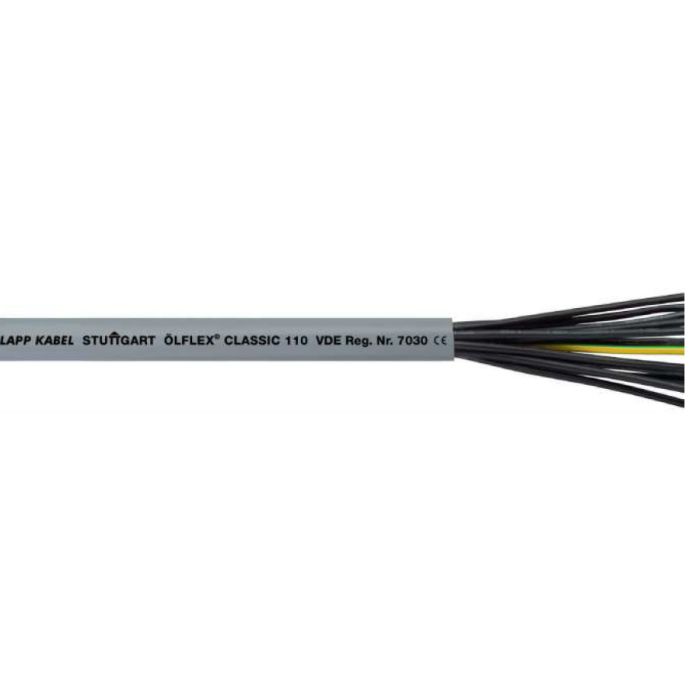

Lapp Kabel Olflex Classic 110 Flexible Control Cable Unscreened 14 Core & Earth 0.75mm 0.3/0.5kV Copper PVC/PVC Grey
Lapp Kabel Olflex Classic 110 Flexible Control Cable Unscreened 14 Core & Earth 0.75mm 0.3/0.5kV Copper PVC/PVC Grey
In stock
SKU
LAP1119115
Flexible Control Cable, 0.75 mm, Bare Copper, 0.3-0.5 kV, 14 Core + Earth, 10.9 mm Overall Diameter, Static 43.6 mm Flexible 109 mm Bend Radius, 26 Ohm/km Conductor Resistance, Black/Green/Yellow/White Numerals Core, PVC Insulation, PVC Sheath, Grey Sheath, Static -40 to 80 deg C Flexible -15 to 70 deg C, IEC 60228 Class 5 EN 50525-2-51
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Olflex Classic 110 |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 1119115 |
| Bend Radius | Static 43.6 mm - Flexible 109 mm |
| Conductor Resistance | 26 Ohm/km |
| Conductor Size | 0.75 mm |
| Conductor Type | Bare Copper |
| Core Colours | Black/Green/Yellow/White Numerals |
| Insulation Material | PVC |
| Number of Cores | 14 Core + Earth |
| Overall Diameter | 10.9 mm |
| Product Type | Flexible Control Cable |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Standards | IEC 60228 Class 5 EN 50525-2-51 |
| Temperature | Static -40 to 80 deg C Flexible -15 to 70 deg C |
| Voltage | 0.3-0.5 kV |
Description
Flexible Control Cable, 0.75 mm, Bare Copper, 0.3-0.5 kV, 14 Core + Earth, 10.9 mm Overall Diameter, Static 43.6 mm Flexible 109 mm Bend Radius, 26 Ohm/km Conductor Resistance, Black/Green/Yellow/White Numerals Core, PVC Insulation, PVC Sheath, Grey Sheath, Static -40 to 80 deg C Flexible -15 to 70 deg C, IEC 60228 Class 5 EN 50525-2-51
