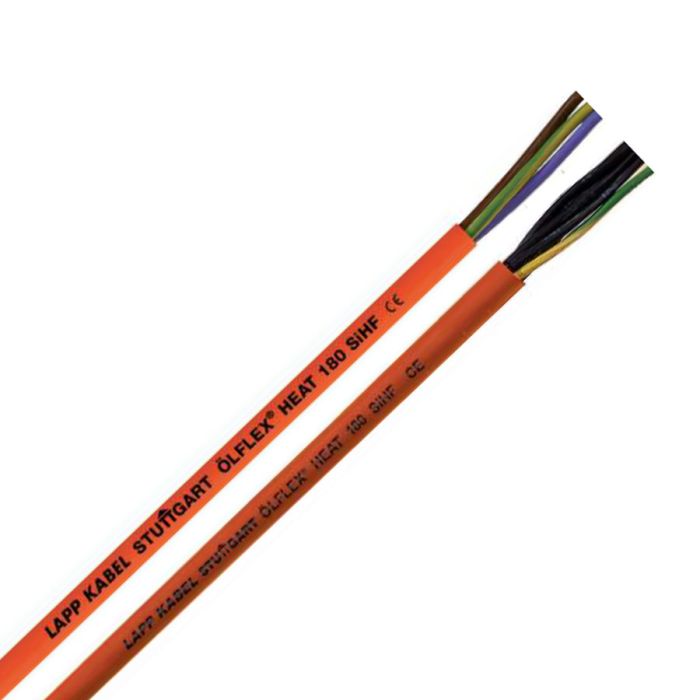

Lapp Kabel Olflex Heat 180 SiHF Flexible Cable 4 Core & Earth 1.5mm 0.3/0.5kV Silicone Red/Brown
Lapp Kabel Olflex Heat 180 SiHF Flexible Cable 4 Core & Earth 1.5mm 0.3/0.5kV Silicone Red/Brown
In stock
SKU
LAP00460163
Flexible Cable, Double Insulated, Expanded Ambient Temperature, 4 Core & Earth, 1.5 mm, Tinned Copper, 0.3/0.5 kV, 9.6 mm Overall Diameter, Bend Radius: Static - 38.4 mm Flexible - 144 mm, Silicone Rubber Insulation, Silicone Rubber Sheath, Red/Brown Sheath, -50 to 180 deg C, EN 50525-2-83
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Olflex Heat 180 |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 00460163 |
| Bend Radius | Static: 38.4 mm - Flexible: 144 mm |
| Conductor Type | Tinned Annealed Copper |
| Conductor Size | 1.5 mm |
| Insulation Material | Silicone Rubber |
| Sheath Colour | Red/Brown |
| Overall Diameter | 9.6 mm |
| Number of Cores | 4 Core + Earth |
| Product Type | Flexible Cable Expanded Ambient Temperature Double Insulated |
| Sheath Material | Silicone Rubber |
| Standards | EN 50525-2-83 |
| Temperature | -50 to 180 deg C |
| Voltage | 0.3-0.5 kV |
Description
Flexible Cable, Double Insulated, Expanded Ambient Temperature, 4 Core & Earth, 1.5 mm, Tinned Copper, 0.3/0.5 kV, 9.6 mm Overall Diameter, Bend Radius: Static - 38.4 mm Flexible - 144 mm, Silicone Rubber Insulation, Silicone Rubber Sheath, Red/Brown Sheath, -50 to 180 deg C, EN 50525-2-83
