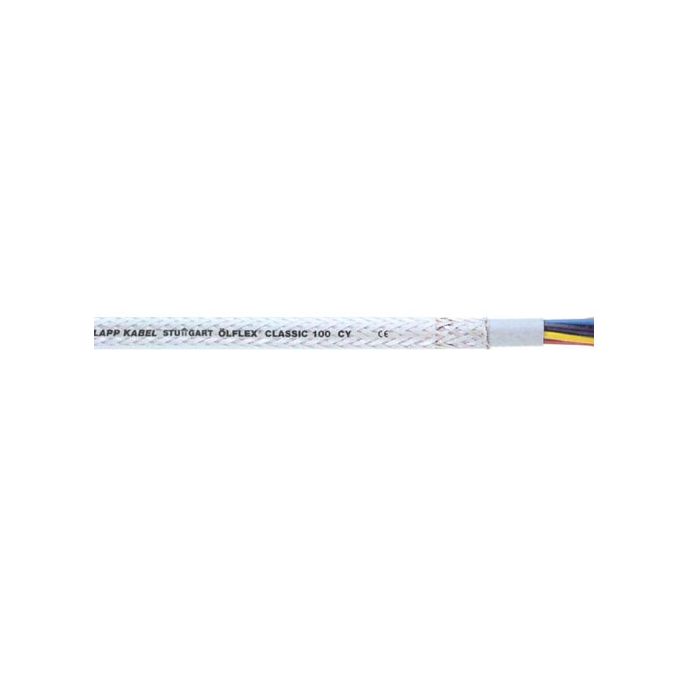

Olflex Classic 100 CY Flexible Control Cable VSD EMC Screened 3 Core & Earth 1mm 300/500V Copper PVC/EMC/PVC Clear
Olflex Classic 100 CY Flexible Control Cable VSD EMC Screened 3 Core & Earth 1mm 300/500V Copper PVC/EMC/PVC Clear
In stock
SKU
LAP00352223
Flexible Control Cable VSD EMC, 1 mm, Bare Copper, 300-500 Volt, 3 Core + Earth, 8.7 mm Overall Diameter, Static 52.2 mm Flexible 174 mm Bend Radius, 19.5 Ohm/km Conductor Resistance, Tinned Copper Braid Screen, Brown/Black/Grey/Green/Yellow Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -5 to70 deg C, IEC 60228 Class 5 EN 50525-2-51
| Features |
|
|---|---|
| Brand | Lapp Kabel |
| Range Name | Olflex Classic 100CY |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 00352223 |
| Bend Radius | Static 52.2 mm - Flexible 174 mm |
| Conductor Resistance | 19.5 Ohm/km |
| Core Colours | Brown/Black/Grey/Green/Yellow |
| Conductor Size | 1 mm |
| Conductor Type | Bare Copper |
| Insulation Material | PVC |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 8.7 mm |
| Product Type | Flexible Control Cable VSD EMC |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Clear |
| Sheath Material | PVC |
| Standards | IEC 60228 Class 5 EN 50525-2-51 |
| Temperature | Static -40 to 80 deg C Flexible -5 to70 deg C |
| Voltage | 300-500 Volt |
Description
Flexible Control Cable VSD EMC, 1 mm, Bare Copper, 300-500 Volt, 3 Core + Earth, 8.7 mm Overall Diameter, Static 52.2 mm Flexible 174 mm Bend Radius, 19.5 Ohm/km Conductor Resistance, Tinned Copper Braid Screen, Brown/Black/Grey/Green/Yellow Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -5 to70 deg C, IEC 60228 Class 5 EN 50525-2-51
