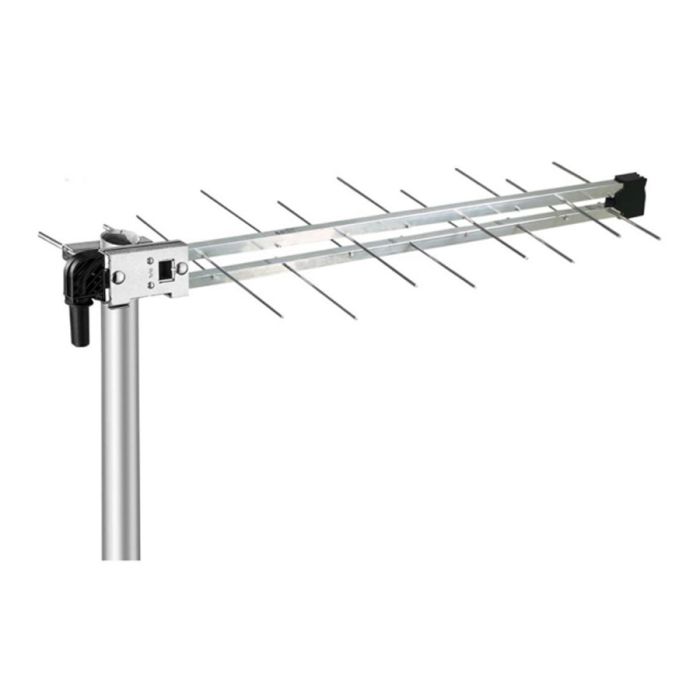

Fracarro TV Antenna Band IV Log Periodic E21-E37 Channel 10dB Gain F Type Connector

Name: TV Antenna Band IV Log Periodic E21-E37 F Connector
SKU: LACLP4F
Availability: InStock

In stock

SKU

LACLP4F

Log-periodic pre-assembled aerials for IV band characterized by extremely easy connection due to the F connector being located near the mast clamp

More Information
Features	Thanks to the special pole mount, the aerial can be installed in both vertical and horizontal polarisation without adaptors or other accessories The care taken in the design is also reflected in the special dipole connection that guarantees reliable contact over time They have excellent mechanical resistance for fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, and good electrical performance The F connector is protected by a bayonet connector cover Black colour aerial
Brand	Fracarro
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	LP4F
Beam Width	+/-28 deg VHF
Boom Size	99 cm Length
Channels	E21-E37
Connector Type	F-Type
Dimensions	32 cm Width
For Use With	TV
Front to Back Ratio	32 dB
Impedance	75 Ohm
Number of Elements	8
Please Note	Band 4
Product Type	TV Antennas
Return Loss	18 dB VHF

Description

Log-periodic pre-assembled aerials for IV band characterized by extremely easy connection due to the F connector being located near the mast clamp
