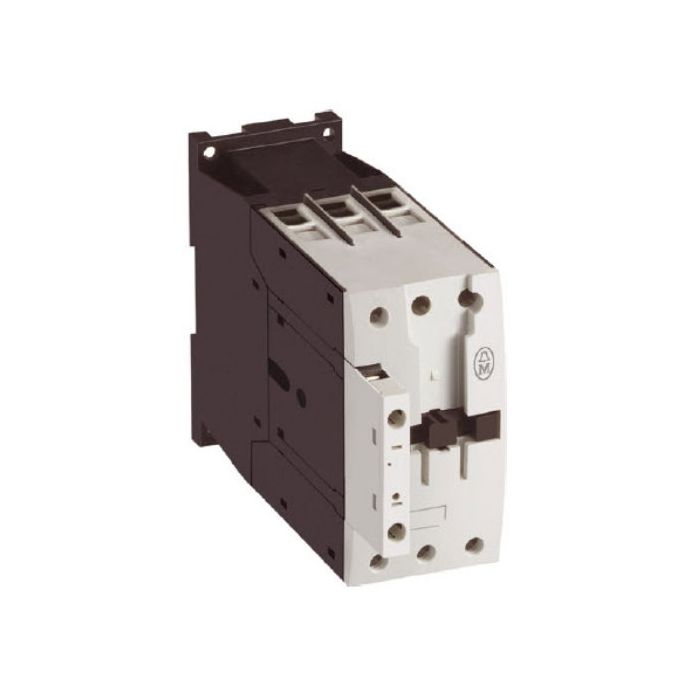

Eaton Moeller Contactor General Purpose AC Operated Non-Reversing 3 Pole 22kW 50A AC3 80A AC1 110/120V
Eaton Moeller Contactor General Purpose AC Operated Non-Reversing 3 Pole 22kW 50A AC3 80A AC1 110/120V
In stock
SKU
KLODILM50110V50HZ
Contactor General Purpose AC Operated Non-Reversing, 110/120 Volt AC at 50/60 Hz, AC3 Rating (kW): 30 at 660/690 Volt, 22 at 380/400 Volt, 15.5 at 220/230 Volt, AC3 Rating (Amps): 50 at 380/400 Volt, AC1 Rating (Amps): 80 Open, 58 Enclosed, 440 Volt AC, 3 Pole, Operating Time: 10 ms, Screw Terminal, DIN Rail/Base Mount, IP00, -25 to 60 deg C, 115 mm Height, 77 mm Width, 147 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase
| Features |
|
|---|---|
| Brand | Eaton Moeller |
| Range Name | X-Start |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | DILM50(110V50HZ-120V60HZ) |
| AC1 Rating (Amps) | 80/58 Amp AC1 |
| AC3 Rating (Amps) | 50 Amp AC3 |
| AC3 Rating (kW) | 30/22/15.5 kW |
| Contact Voltage | 440 Volt AC |
| Depth | 147 mm |
| Height | 115 mm |
| IP Rating | IP00 |
| Mounting Method | DIN Rail/Base |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 110-120 Volt AC @ 50/60 Hz |
| Operating Time | 10 ms |
| Please Note | Also suitable for motors with efficiency class IE3, 3 Phase |
| Product Type | Contactors Non-Reversing |
| Temperature | -25 to 60 deg C |
| Terminal Connection | Screw |
| Width | 77 mm |
Description
Contactor General Purpose AC Operated Non-Reversing, 110/120 Volt AC at 50/60 Hz, AC3 Rating (kW): 30 at 660/690 Volt, 22 at 380/400 Volt, 15.5 at 220/230 Volt, AC3 Rating (Amps): 50 at 380/400 Volt, AC1 Rating (Amps): 80 Open, 58 Enclosed, 440 Volt AC, 3 Pole, Operating Time: 10 ms, Screw Terminal, DIN Rail/Base Mount, IP00, -25 to 60 deg C, 115 mm Height, 77 mm Width, 147 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase
