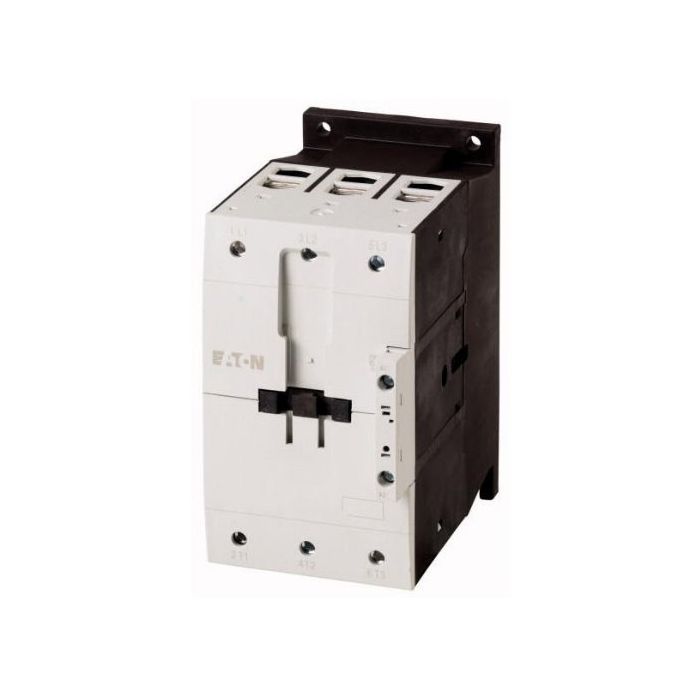

Eaton Moeller Contactor General Purpose DC Operated Non-Reversing 3 Pole 55kW 115A AC3 160A AC1 24VDC
Eaton Moeller Contactor General Purpose DC Operated Non-Reversing 3 Pole 55kW 115A AC3 160A AC1 24VDC
In stock
SKU
KLODILM115RDC24
Contactor General Purpose DC Operated Non-Reversing, 24 Volt DC, AC3 Rating (kW): 90 at 660/690 Volt, 55 at 380/400 Volt, 37 at 220/230 Volt, AC3 Rating (Amps): 115 at 380/400 Volt, AC1 Rating (Amps): 160 Open, 115 Enclosed, 690 Volt AC, 3 Pole, Operating Time: 15 ms, Screw Terminal, DIN Rail/Base Mount, IP00, -25 to 60 deg C, 170 mm Height, 111 mm Width, 175 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase
| Features |
|
|---|---|
| Brand | Eaton Moeller |
| Range Name | X-Start |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | DILM115(RDC24) |
| AC1 Rating (Amps) | 160/115 Amp AC1 |
| AC3 Rating (Amps) | 115 Amp AC3 |
| AC3 Rating (kW) | 90/55/37 kW |
| Contact Voltage | 690 Volt AC |
| Depth | 175 mm |
| Height | 170 mm |
| IP Rating | IP00 |
| Mounting Method | DIN Rail/Base |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 24 Volt DC |
| Operating Time | 15 ms |
| Please Note | Also suitable for motors with efficiency class IE3 3 Phase |
| Product Type | Contactors Non-Reversing |
| Temperature | -25 to 60 deg C |
| Terminal Connection | Screw |
| Width | 111 mm |
Description
Contactor General Purpose DC Operated Non-Reversing, 24 Volt DC, AC3 Rating (kW): 90 at 660/690 Volt, 55 at 380/400 Volt, 37 at 220/230 Volt, AC3 Rating (Amps): 115 at 380/400 Volt, AC1 Rating (Amps): 160 Open, 115 Enclosed, 690 Volt AC, 3 Pole, Operating Time: 15 ms, Screw Terminal, DIN Rail/Base Mount, IP00, -25 to 60 deg C, 170 mm Height, 111 mm Width, 175 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase
