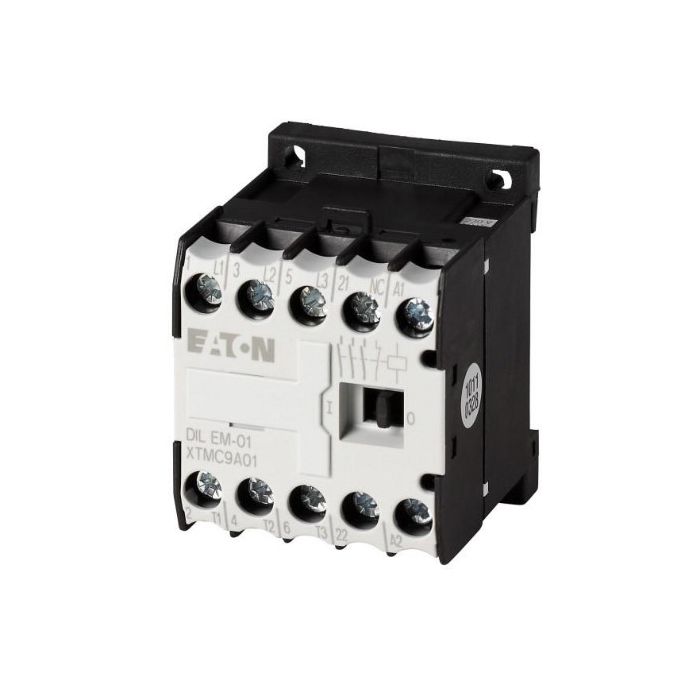

Eaton Moeller Contactor General Purpose DC Operated 3 Pole 4kW 9A AC3 22A AC1 24VDC 1NC Auxilary DIN Rail/Base Mount
Eaton Moeller Contactor General Purpose DC Operated 3 Pole 4kW 9A AC3 22A AC1 24VDC 1NC Auxilary DIN Rail/Base Mount
In stock
SKU
KLODILEM-01-G-24VDC
Contactor General Purpose DC Operated, 24 Volt DC, AC3 Rating (kW): 4 at 660/690 Volt, 4 at 380/400 Volt, 2.2 at 220/230 Volt, AC3 Rating (Amps): 9 at 380/400 Volt, AC1 Rating (Amps): 22 Open, 300 Volt AC, 1NC Auxiliary, 3 Pole, Operating Time: 12 ms, Screw Terminal, DIN Rail/Base Mount, IP20, -25 to 60 deg C, 58 mm Height, 45 mm Width, 52 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase
| Features |
|
|---|---|
| Brand | Eaton Moeller |
| Range Name | X-Start |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | DILEM-01-G(24VDC) |
| AC1 Rating (Amps) | 22 Amp AC1 |
| AC3 Rating (Amps) | 9 Amp AC3 |
| AC3 Rating (kW) | 4/4/2.2 kW |
| Contact Voltage | 300 Volt AC |
| Contact Configuration | 1 Normally Closed Aux |
| Depth | 52 mm |
| Height | 58 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Base |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 24 Volt DC |
| Operating Time | 12 ms |
| Please Note | Also suitable for motors with efficiency class IE3, 3 Phase |
| Product Type | Contactors General |
| Temperature | -25 to 60 deg C |
| Terminal Connection | Screw |
| Width | 45 mm |
Description
Contactor General Purpose DC Operated, 24 Volt DC, AC3 Rating (kW): 4 at 660/690 Volt, 4 at 380/400 Volt, 2.2 at 220/230 Volt, AC3 Rating (Amps): 9 at 380/400 Volt, AC1 Rating (Amps): 22 Open, 300 Volt AC, 1NC Auxiliary, 3 Pole, Operating Time: 12 ms, Screw Terminal, DIN Rail/Base Mount, IP20, -25 to 60 deg C, 58 mm Height, 45 mm Width, 52 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase
