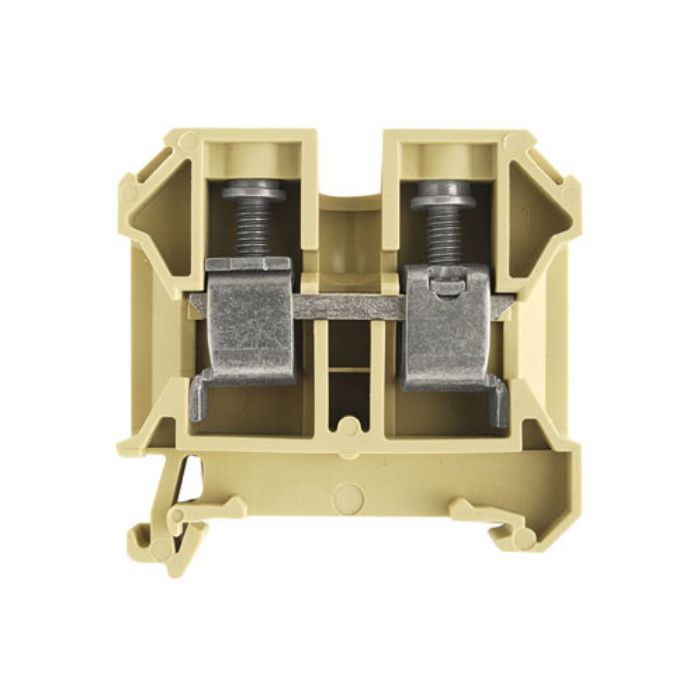

Weidmuller Klippon Rail Terminal Block Screwed 2 Wire 1 Level 16mm Beige/Yellow Polyamide 66
Weidmuller Klippon Rail Terminal Block Screwed 2 Wire 1 Level 16mm Beige/Yellow Polyamide 66
In stock
SKU
KLI3806.6
Rail Terminal Block, 1000 Volt, Rated Surge Voltage: 8 kV, 76 Amp, 16mm Conductor, 2 Conductors, Wire Strip Length: 15 mm, Tightening Torque: 2 to 2.64 N/m, Wiring Format: 2 Conductor Through, Side Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking: Ex eb II C Gb, Screw Terminal, TS 35 Rail/Snap-On Mount, Insulation Material: Polyamide 66, Beige/Yellow, -50 to 100 deg C Continuous Operating, Flammability: V2, Height: 57.5 mm, 50 mm Width, 12 mm Depth
| Brand | Weidmuller |
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 0380660000-NLA |
| Colour | Beige/Yellow |
| Conductor Size | 16mm |
| Current Rating | 76 Amp |
| Depth | 12mm |
| Flammability | V2 |
| Insulation Material | Polyamide 66 |
| Height | 57.5mm |
| Marking | Ex eb II C Gb |
| Mounting Method | TS 35 Rail - Snap-On |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Rated Surge Voltage | 8 kV |
| Product Type | Rail Terminal Blocks |
| Terminal Type | Screw |
| Tightening Torque | 2-2.64 N/m |
| Voltage Rating | 1000 Volt |
| Width | 50mm |
| Wire Entry Orientation | Side |
| Wire Strip Length | 15 mm |
| Wiring Format | 2 Conductor Through |
Description
Rail Terminal Block, 1000 Volt, Rated Surge Voltage: 8 kV, 76 Amp, 16mm Conductor, 2 Conductors, Wire Strip Length: 15 mm, Tightening Torque: 2 to 2.64 N/m, Wiring Format: 2 Conductor Through, Side Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking: Ex eb II C Gb, Screw Terminal, TS 35 Rail/Snap-On Mount, Insulation Material: Polyamide 66, Beige/Yellow, -50 to 100 deg C Continuous Operating, Flammability: V2, Height: 57.5 mm, 50 mm Width, 12 mm Depth
