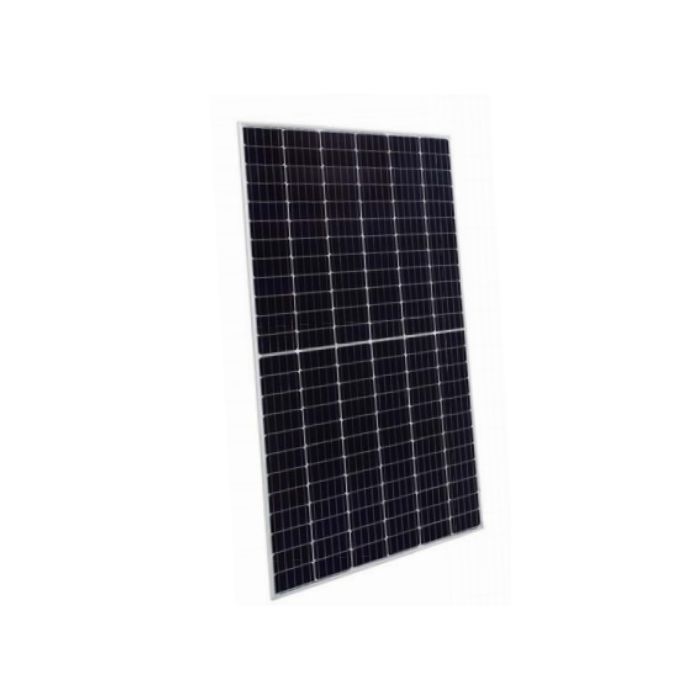

Jinko Solar Eagle HC Solar Panel Half Cell 350W Mono-Crystalline 72 Cells
Jinko Solar Eagle HC Solar Panel Half Cell 350W Mono-Crystalline 72 Cells
In stock
SKU
JKM350M-72H
Solar Panel, Monocrystalline Cell Type, 72 Number of Cells, 350 Watt Max. Power, 39.3 Volt Max. Voltage, 8.91 Amp Max. Current, 47.9 Volt Open Circuit Voltage, 9.23 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 17.76% Module Efficiency, 0 - 3% Power Tolerance, Anode 290 mm, Cathode 145 mm or Customized Length Output Cables, IP67 Junction Box, Anodize Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Tempered Glass with Anti-Reflection Front Glass, 0.37%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1987 mm ? 992 mm ? 40 mm Dimensions, 22.5 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
| Features |
|
|---|---|
| Brand | Jinko Solar |
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | JKM350M-72H |
| Cell Type | Monocrystalline |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm/High Transmission/Tempered Glass with Anti-Reflection |
| Certifications | ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730 |
| Item Weight | 22.5 kg |
| Junction Box | IP67 |
| Max. System Voltage | 1000 Volt DC (IEC) |
| Max. Fuse Current | 20 Amp |
| Max. Current | 8.91 Amp |
| Max. Voltage | 39.3 Volt |
| Open Circuit Voltage | 47.9 Volt |
| Number Of Cells | 72 |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | Anode 290 mm/Cathode 145 mm |
| Product Type | Solar Panels |
| Power Tolerance | 0-3% |
| Short Circuit Current | 9.23 Amp |
| Temperature Coefficient | 0.37%/deg C |
| Wattage | 350 Watt |
Description
Solar Panel, Monocrystalline Cell Type, 72 Number of Cells, 350 Watt Max. Power, 39.3 Volt Max. Voltage, 8.91 Amp Max. Current, 47.9 Volt Open Circuit Voltage, 9.23 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 17.76% Module Efficiency, 0 - 3% Power Tolerance, Anode 290 mm, Cathode 145 mm or Customized Length Output Cables, IP67 Junction Box, Anodize Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Tempered Glass with Anti-Reflection Front Glass, 0.37%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1987 mm ? 992 mm ? 40 mm Dimensions, 22.5 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
