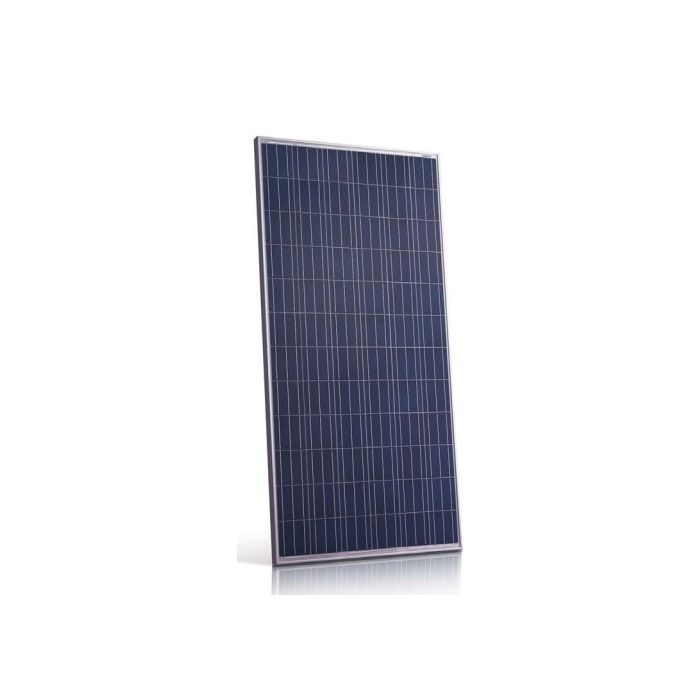

Jinko Solar Eagle Solar Panel 320W Poly-Crystalline 72 Cells

Jinko Solar Eagle Solar Panel 320W Poly-Crystalline 72 Cells

In stock
SKU
JKM320PP-72
Solar Panel, Polycrystalline Cell Type, 72 Number of Cells, 320 Watt Max. Power, 37.4 Volt Max. Voltage, 8.56 Amp Max. Current, 46.4 Volt Open Circuit Voltage, 9.05 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 16.49% Module Efficiency, 0 - 3% Power Tolerance, T?V 1 ? 4 sq-mm, Length: 1200 mm or Customized Length Output Cables, IP67 Rated Junction Box, Anodized Aluminium Alloy Frame Construction, 4 mm, High Transmission, Low Iron, Tempered Glass Front Glass, 0.40%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1956 mm ? 992 mm ? 40 mm Dimensions, 26.5 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
More Information
Features
  • 5 busbar solar cell
  • High power output
  • PID resistant
  • Low-light performance
  • Severe weather resilience
  • Durability against extreme environmental conditions
  • Temperature coefficient
Brand Jinko Solar
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product JKM320PP-72
Cell Type Polycrystalline
Frame Construction Anodized Aluminium
Front Glass 4 mm/High Transmission/Low Iron/Tempered Glass
Certifications ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730
Item Weight 26.5 kg
Junction Box IP67 Rated
Max. System Voltage 1000 Volt DC (IEC)
Max. Fuse Current 15 Amp
Max. Current 8.56 Amp
Max. Voltage 37.4 Volt
Open Circuit Voltage 46.4 Volt
Number Of Cells 72
Operating Temperature -40 to 85 deg C
Output Cables T?V 1 ? 4 sq-mm/Length: 1200 mm
Product Type Solar Panels
Power Tolerance 0-3%
Short Circuit Current 9.05 Amp
Temperature Coefficient 0.40%/deg C
Wattage 320 Watt

Description

Solar Panel, Polycrystalline Cell Type, 72 Number of Cells, 320 Watt Max. Power, 37.4 Volt Max. Voltage, 8.56 Amp Max. Current, 46.4 Volt Open Circuit Voltage, 9.05 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 16.49% Module Efficiency, 0 - 3% Power Tolerance, T?V 1 ? 4 sq-mm, Length: 1200 mm or Customized Length Output Cables, IP67 Rated Junction Box, Anodized Aluminium Alloy Frame Construction, 4 mm, High Transmission, Low Iron, Tempered Glass Front Glass, 0.40%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1956 mm ? 992 mm ? 40 mm Dimensions, 26.5 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
