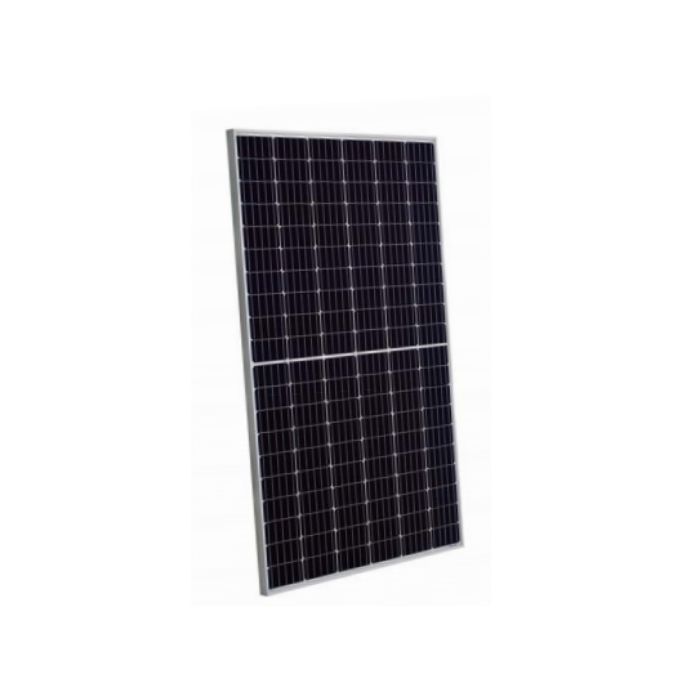

Jinko Solar Eagle HC Solar Panel Half Cell 310W Mono-Crystalline 60 Cells
Jinko Solar Eagle HC Solar Panel Half Cell 310W Mono-Crystalline 60 Cells
In stock
SKU
JKM310M-60H
Solar Panel, Monocrystalline Cell Type, 60 Number of Cells, 310 Watt Max. Power, 33 Volt Max. Voltage, 9.4 Amp Max. Current, 40.5 Volt Open Circuit Voltage, 10.15 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 18.77% Module Efficiency, 0 - 3% Power Tolerance, JK03M; Jinko PV Material Connector, (+) 290 mm, (-) 145 mm or Customized Length Output Cables, IP67 Junction Box, Anodize Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Tempered Glass with Anti-Reflection Front Glass, 0.36%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1665 mm ? 992 mm ? 35 mm Dimensions, 19 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
| Features |
|
|---|---|
| Brand | Jinko Solar |
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | JKM310M-60H |
| Cell Type | Monocrystalline |
| Connector Type | JK03M; Jinko PV Material |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm/High Transmission/Tempered Glass with Anti-Reflection |
| Certifications | ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730 |
| Item Weight | 19 kg |
| Junction Box | IP67 |
| Max. System Voltage | 1000 Volt DC (IEC) |
| Max. Fuse Current | 20 Amp |
| Max. Current | 9.4 Amp |
| Max. Voltage | 33 Volt |
| Open Circuit Voltage | 40.5 Volt |
| Number Of Cells | 60 |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | (+) 290 mm/(-) 145 mm |
| Product Type | Solar Panels |
| Power Tolerance | 0-3% |
| Short Circuit Current | 10.15 Amp |
| Temperature Coefficient | 0.36%/deg C |
| Wattage | 310 Watt |
Description
Solar Panel, Monocrystalline Cell Type, 60 Number of Cells, 310 Watt Max. Power, 33 Volt Max. Voltage, 9.4 Amp Max. Current, 40.5 Volt Open Circuit Voltage, 10.15 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 18.77% Module Efficiency, 0 - 3% Power Tolerance, JK03M; Jinko PV Material Connector, (+) 290 mm, (-) 145 mm or Customized Length Output Cables, IP67 Junction Box, Anodize Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Tempered Glass with Anti-Reflection Front Glass, 0.36%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1665 mm ? 992 mm ? 35 mm Dimensions, 19 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
