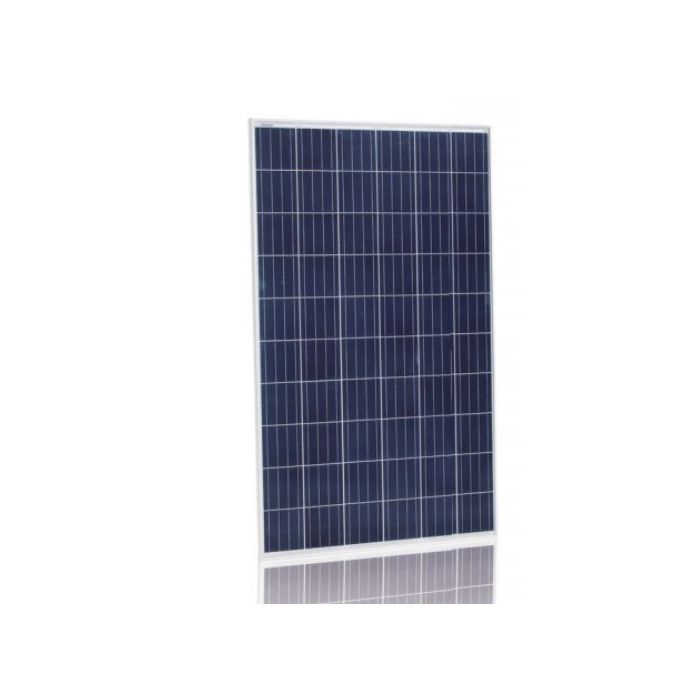

Jinko Solar Eagle Solar Panel 275W Poly-Crystalline 60 Cells
Jinko Solar Eagle Solar Panel 275W Poly-Crystalline 60 Cells
In stock
SKU
JKM275PP-60
Solar Panel, Polycrystalline Cell Type, 60 Number of Cells, 275 Watt Max. Power, 32 Volt Max. Voltage, 8.61 Amp Max. Current, 39.1 Volt Open Circuit Voltage, 9.15 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 16.80% Module Efficiency, 0 - 3% Power Tolerance, T?V 1 ? 4 sq-mm, Length: 900 mm or Customized Length Output Cables, IP67 Rated Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Low Iron, Tempered Glass Front Glass, 0.40%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1650 mm ? 992 mm ? 40 mm Dimensions, 19 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
| Features |
|
|---|---|
| Brand | Jinko Solar |
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | JKM275PP-60 |
| Cell Type | Polycrystalline |
| Certifications | ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730 |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm/High Transmission/Low Iron/Tempered Glass |
| Item Weight | 19 kg |
| Junction Box | IP67 Rated |
| Max. Current | 8.61 Amp |
| Max. System Voltage | 1000 Volt DC (IEC) |
| Max. Fuse Current | 15 Amp |
| Max. Voltage | 32 Volt |
| Number Of Cells | 60 |
| Open Circuit Voltage | 39.1 Volt |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | T?V 1 ? 4 sq-mm/Length: 900 mm |
| Power Tolerance | 0-3% |
| Temperature Coefficient | 0.40%/deg C |
| Product Type | Solar Panels |
| Short Circuit Current | 9.15 Amp |
| Wattage | 275 Watt |
Description
Solar Panel, Polycrystalline Cell Type, 60 Number of Cells, 275 Watt Max. Power, 32 Volt Max. Voltage, 8.61 Amp Max. Current, 39.1 Volt Open Circuit Voltage, 9.15 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 16.80% Module Efficiency, 0 - 3% Power Tolerance, T?V 1 ? 4 sq-mm, Length: 900 mm or Customized Length Output Cables, IP67 Rated Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Low Iron, Tempered Glass Front Glass, 0.40%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1650 mm ? 992 mm ? 40 mm Dimensions, 19 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications
