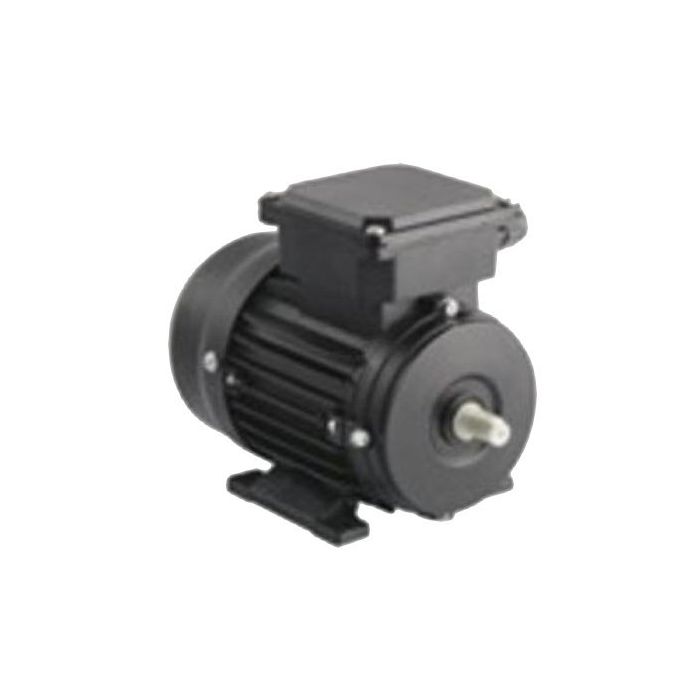

Invertek Electric Motor Squirrel Cage Induction 4P 0.55kW 1Ph 220-240V 801 Frame Foot Mount
Invertek Electric Motor Squirrel Cage Induction 4P 0.55kW 1Ph 220-240V 801 Frame Foot Mount
In stock
SKU
INVM14000553IMSR
Electric Motor Squirrel Cage Induction, 220-240 Volt AC, 10 Amp, 0.55 kW, 50 Hz, 1 Phase, 1400 rpm, 4 Pole, IP55, Frame: 801, Shaft Size: 19 mm, Anti-Clockwise Rotation, Duty Cycle: S1, Torque: 1.8-2.5 Tn, Foot Mount, Insulation Class: Class F, 40 deg C, Aluminium Alloy, 295 mm Length x215 mm Height
| Features |
|
|---|---|
| Brand | Invertek |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | M14000553IMSR |
| Current | 10 Amp |
| Frame | Size 801 |
| Height | 215 mm |
| Frequency | 50 Hz |
| Insulation Class | Class F |
| IP Rating | IP55 |
| Horsepower | 0.55 kW |
| Length | 295 mm |
| Mounting Method | Foot |
| Material | Aluminium Alloy |
| Number Of Poles | 4 Pole |
| Product Type | Motors SCIM |
| Phase | 1 Phase |
| Rotation | Anti-Clockwise |
| Shaft Size | 19 mm |
| Speed | 1400 rpm |
| Temperature | 40 deg C |
| Voltage | 220-240 Volt AC |
| Torque Rating | 1.8-2.5 Tn |
Description
Electric Motor Squirrel Cage Induction, 220-240 Volt AC, 10 Amp, 0.55 kW, 50 Hz, 1 Phase, 1400 rpm, 4 Pole, IP55, Frame: 801, Shaft Size: 19 mm, Anti-Clockwise Rotation, Duty Cycle: S1, Torque: 1.8-2.5 Tn, Foot Mount, Insulation Class: Class F, 40 deg C, Aluminium Alloy, 295 mm Length x215 mm Height
