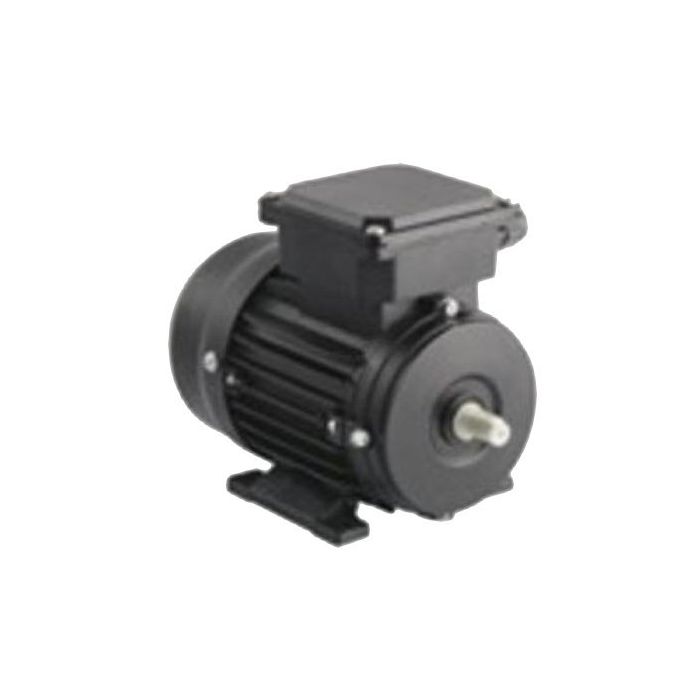

Invertek Electric Motor Squirrel Cage Induction 4P 0.37kW 1Ph 220-240V 712 Frame Foot Mount
Invertek Electric Motor Squirrel Cage Induction 4P 0.37kW 1Ph 220-240V 712 Frame Foot Mount
In stock
SKU
INVM14000373IMR
Electric Motor Squirrel Cage Induction, 220-240 Volt AC, 2.4 Amp, 0.37 kW, 50 Hz, 1 Phase, 1400 rpm, 4 Pole, IP55, Frame: 712, Shaft Size: 14 mm, Anti-Clockwise Rotation, Duty Cycle: S1, Torque: 0.35-1.7 Tn, Foot Mount, Insulation Class: Class F, 40 deg C, Aluminium Alloy, 255 mm Length x 185 mm Height
| Features |
|
|---|---|
| Brand | Invertek |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | M14000373IMR |
| Current | 2.4 Amp |
| Frame | Size 712 |
| Height | 185 mm |
| Frequency | 50 Hz |
| Insulation Class | Class F |
| IP Rating | IP55 |
| Horsepower | 0.37 kW |
| Length | 255 mm |
| Mounting Method | Foot |
| Material | Aluminium Alloy |
| Number Of Poles | 4 Pole |
| Product Type | Motors SCIM |
| Phase | 1 Phase |
| Rotation | Anti-Clockwise |
| Shaft Size | 14 mm |
| Speed | 1400 rpm |
| Temperature | 40 deg C |
| Voltage | 220-240 Volt AC |
| Torque Rating | 0.35-1.7 Tn |
Description
Electric Motor Squirrel Cage Induction, 220-240 Volt AC, 2.4 Amp, 0.37 kW, 50 Hz, 1 Phase, 1400 rpm, 4 Pole, IP55, Frame: 712, Shaft Size: 14 mm, Anti-Clockwise Rotation, Duty Cycle: S1, Torque: 0.35-1.7 Tn, Foot Mount, Insulation Class: Class F, 40 deg C, Aluminium Alloy, 255 mm Length x 185 mm Height
