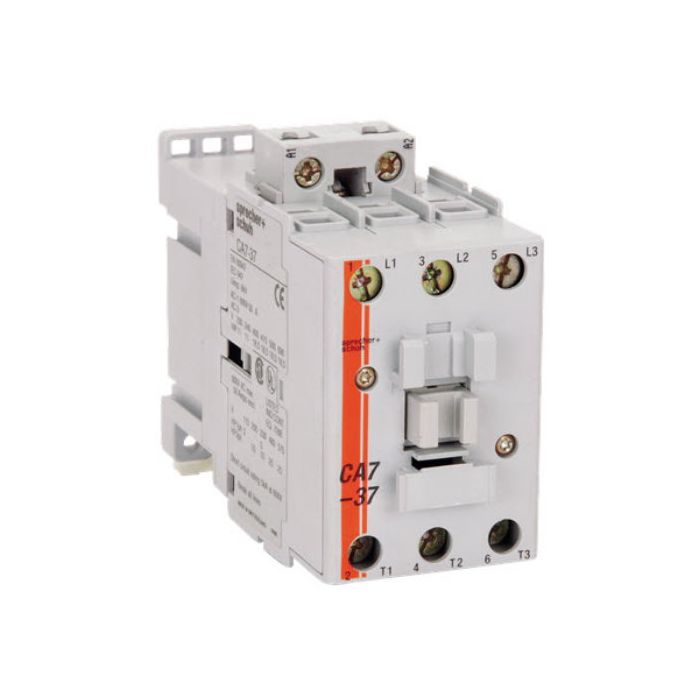

Contactor General Purpose DC Operated Non-Reversing 3 Pole 20kW 37A AC3 65A AC1 48VDC 3NO Main DIN Rail Mount
Contactor General Purpose DC Operated Non-Reversing 3 Pole 20kW 37A AC3 65A AC1 48VDC 3NO Main DIN Rail Mount
In stock
SKU
S&SCA7-37E-00/48E
Contactor General Purpose DC Operated Non-Reversing Standard, 48 Volt DC, AC3 Rating (kW): 20 at 415 Volt, 18.5 at 690 Volt, AC3 Rating (Amps): 37 at 415 Volt, 21 at 690 Volt, AC1 Rating (Amps): 65 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 45 mm Width, Conventional Coil
| Features |
|
|---|---|
| Brand | Sprecher+Schuh |
| Range Name | CA7 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | CA737E0048E |
| AC1 Rating (Amps) | 65 Amp AC1 |
| AC3 Rating (Amps) | 37/21 Amp AC3 |
| AC3 Rating (kW) | 20/18.5 kW |
| Contact Configuration | 3 Normally Opened |
| Height | 81 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 48 Volt DC |
| Please Note | Conventional Coil |
| Product Type | Contactors Non-Reversing |
| Width | 45 mm |
Description
Contactor General Purpose DC Operated Non-Reversing Standard, 48 Volt DC, AC3 Rating (kW): 20 at 415 Volt, 18.5 at 690 Volt, AC3 Rating (Amps): 37 at 415 Volt, 21 at 690 Volt, AC1 Rating (Amps): 65 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 45 mm Width, Conventional Coil
