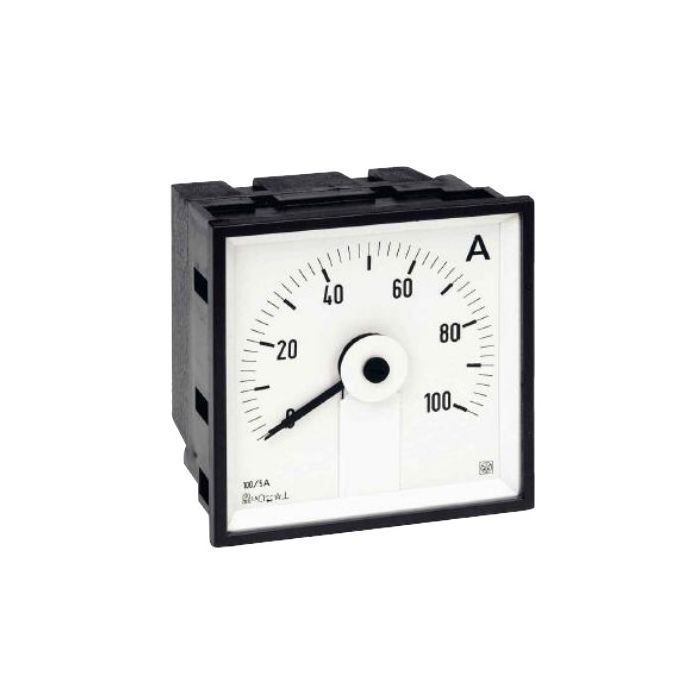

IME AC Ammeter Analogue Moving Iron Current Transformer 0-150A x 5 240Deg 72mm W Panel Mount
IME AC Ammeter Analogue Moving Iron Current Transformer 0-150A x 5 240Deg 72mm W Panel Mount
In stock
SKU
IMEAQ72EACT5A5X150A
AC Ammeter Analogue Moving Iron, 0 to 150 Amp With x 5 Over-Scale, 1 to 100 Amp, 50 Hz, Current Transformer, 240 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 72 mm Height x 72 mm Width, Panel Mount, Self-Extinguishing Polycarbonate
| Brand | IME |
|---|---|
| Range Name | AQ72 |
| Standard Pack Size | 1 |
| UNSPSC Class | 41113600 |
| UOM | EA |
| Vendor Product | AQ72EACT5A5X150 |
| Current | 1/100 Amp |
| Display | Analogue |
| Frame Size | 72mm x 72mm |
| Frequency | 50 Hz |
| Mounting Method | Panel |
| Operation Form | Current Transformer |
| Readout Form | 240 deg Deflection Accuracy Class 1.5 |
| Product Type | Ammeters |
| Scale | 0 to 150 Amp with x5 Over-Scale |
| Temperature | -25 to 50 deg C |
Description
AC Ammeter Analogue Moving Iron, 0 to 150 Amp With x 5 Over-Scale, 1 to 100 Amp, 50 Hz, Current Transformer, 240 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 72 mm Height x 72 mm Width, Panel Mount, Self-Extinguishing Polycarbonate
