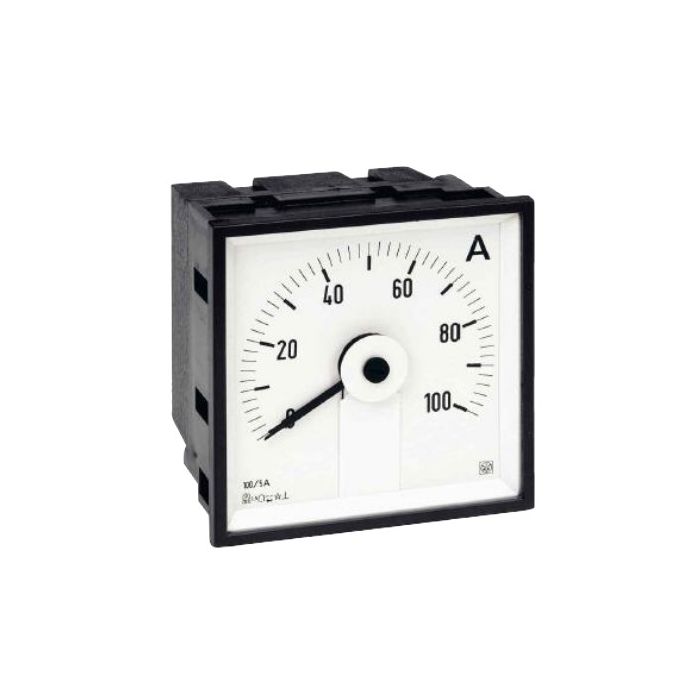

IME AC Ammeter Analogue Moving Iron Current Transformer 0-100A x 5 240Deg 48mm W Panel/Flush Mount
IME AC Ammeter Analogue Moving Iron Current Transformer 0-100A x 5 240Deg 48mm W Panel/Flush Mount
In stock
SKU
IMEAQ48EACT5A5X100A
AC Ammeter Analogue Moving Iron, 0 to 100 Amp With x 5 Over-Scale, 600 Volt, Current Transformer, 240 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 48 mm Height x 48 mm Width, Panel/Flush, Self-Extinguishing Polycarbonate
| Brand | IME |
|---|---|
| Range Name | AQ48 |
| Standard Pack Size | 1 |
| UNSPSC Class | 41113600 |
| UOM | EA |
| Vendor Product | AQ48EACT5A5X100 |
| Display | Analogue |
| Frame Size | 48mm x 48mm |
| Mounting Method | Panel/Flush |
| Operation Form | Current Transformer |
| Product Type | Ammeters |
| Readout Form | 240 deg Deflection Accuracy Class 1.5 |
| Scale | 0 to 100 Amp with x5 Over-Scale |
| Temperature | -25 to 50 deg C |
| Voltage | 600 Volt |
Description
AC Ammeter Analogue Moving Iron, 0 to 100 Amp With x 5 Over-Scale, 600 Volt, Current Transformer, 240 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 48 mm Height x 48 mm Width, Panel/Flush, Self-Extinguishing Polycarbonate
