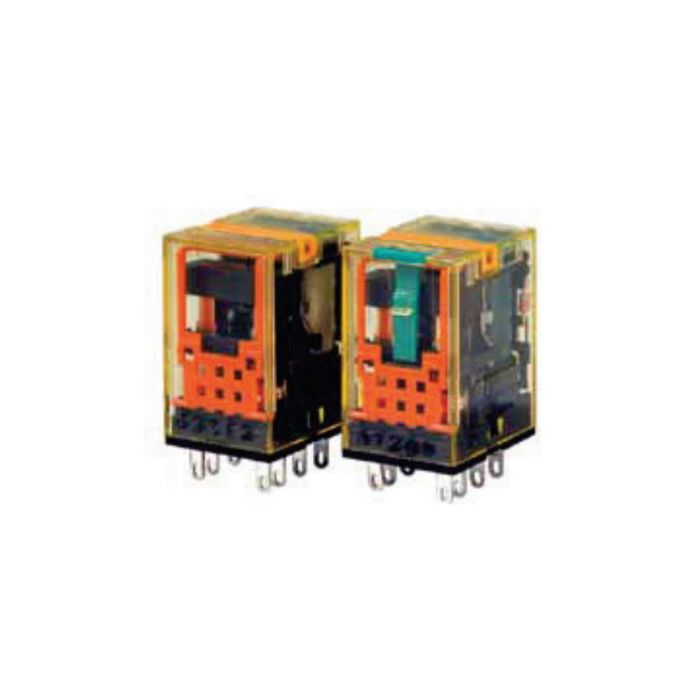

IDEC Miniature Power Relay DIN Rail/Plug-In 2P DPDT 10A 220-240VDC 8 Pin Flat
IDEC Miniature Power Relay DIN Rail/Plug-In 2P DPDT 10A 220-240VDC 8 Pin Flat
In stock
SKU
IDCRU2S-A220
Miniature Power Relay, 220 Volt AC Coil Voltage, 10 Amp, 1.1-1.4/0.9-1.2 VA, 8 Pin Flat, 2 Pole, DPDT Configuration, 100 MOhm, 20 ms Operate/Release Operating Time, Plug-In Terminal, DIN Rail/Plug-In Mounting, Silver Alloy Contact, -55 to 60 deg C, 27.5 mm Height, 41.4 mm Width, 21 mm Depth
| Features |
|
|---|---|
| Brand | IDEC |
| Range Name | RU Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | RU2S-A220 |
| Contact Configuration | DPDT |
| Depth | 21 mm |
| Height | 27.5 mm |
| Current | 10 Amp |
| Mounting Method | DIN Rail/Plug-In |
| Contact Material | Silver Alloy |
| Number Of Poles | 2 Pole |
| Operating Coil Voltage | 220 Volt AC |
| Pin Configuration | 8 Pin Flat |
| Operating Time | 20 ms Operate/Release |
| Power Rating | 1.1-1.4/0.9-1.2 VA |
| Resistance | 100 MOhm |
| Temperature | -55 to 60 deg C |
| Product Type | Power Relays |
| Terminal Type | Plug-In |
| Width | 41.4 mm |
Description
Miniature Power Relay, 220 Volt AC Coil Voltage, 10 Amp, 1.1-1.4/0.9-1.2 VA, 8 Pin Flat, 2 Pole, DPDT Configuration, 100 MOhm, 20 ms Operate/Release Operating Time, Plug-In Terminal, DIN Rail/Plug-In Mounting, Silver Alloy Contact, -55 to 60 deg C, 27.5 mm Height, 41.4 mm Width, 21 mm Depth
